Hybrid Inverter & Battery

EB-10.24KWH~51.2KWH-H01

EB series battery pack

10.24/15.36/20.48/30.72/40.96/51.2kWh

Product Brochure

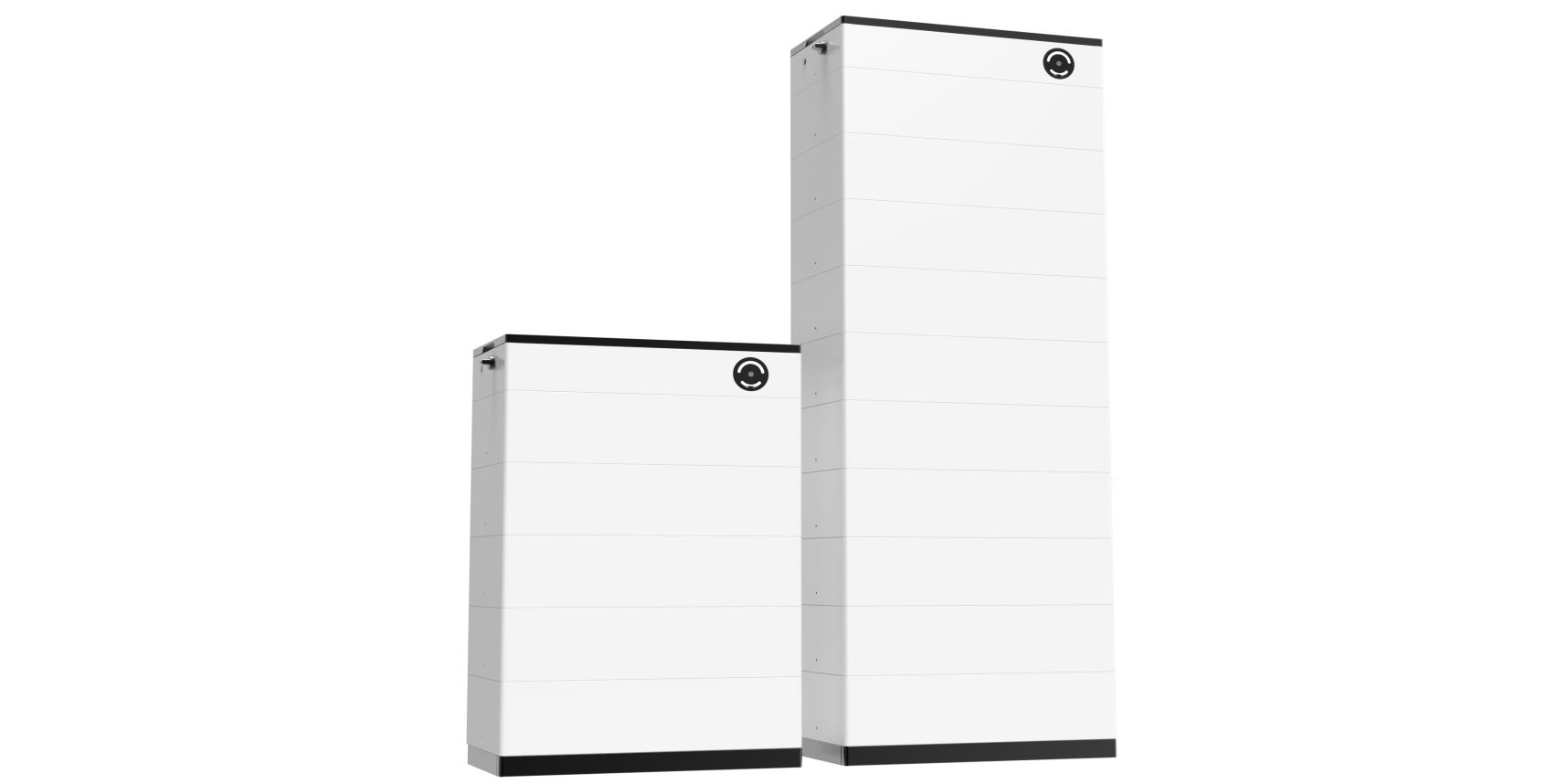

  • EB series battery pack(51.2kWh) (1).png

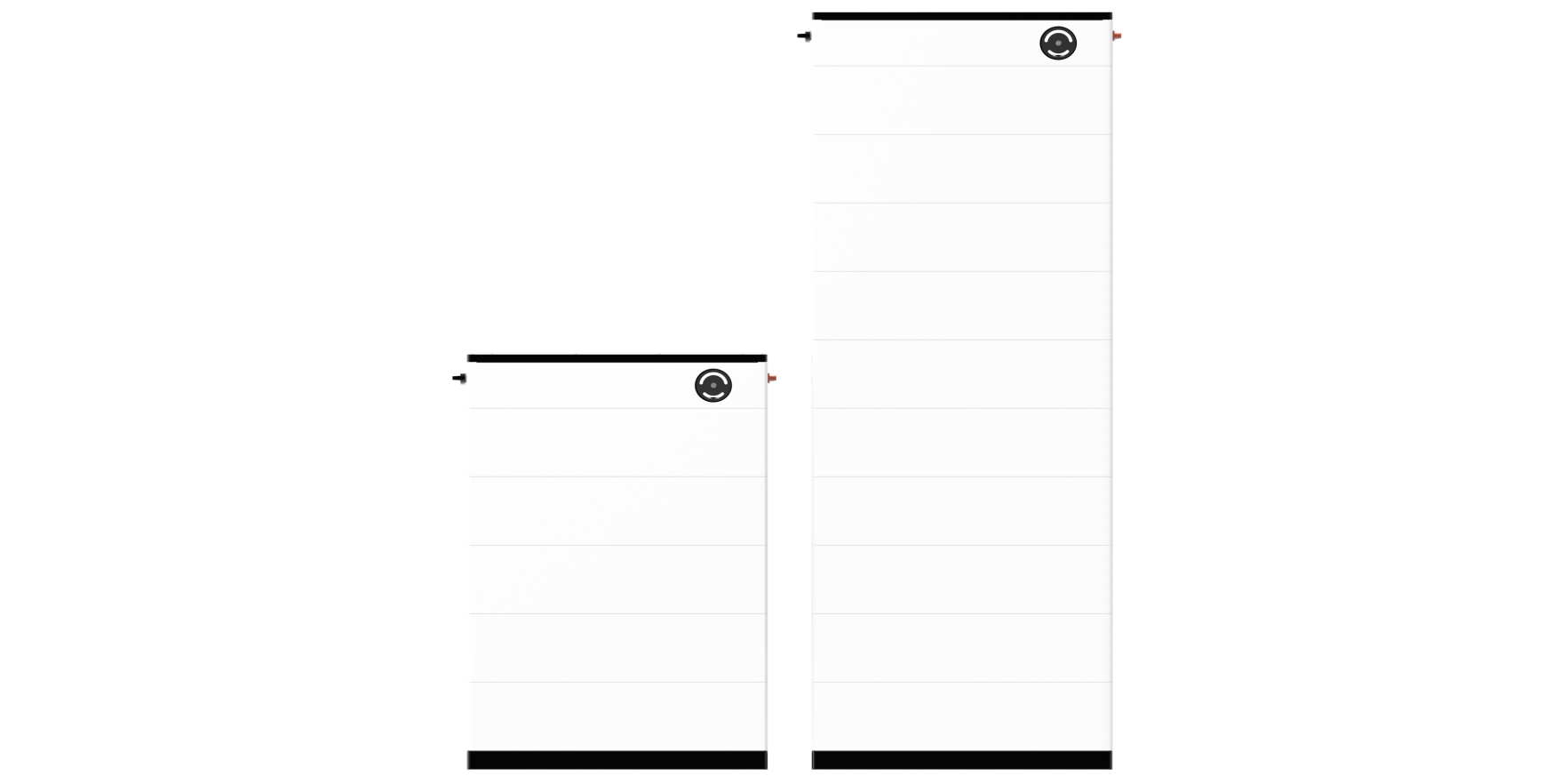

  • EB series battery pack(51.2kWh) (3).png

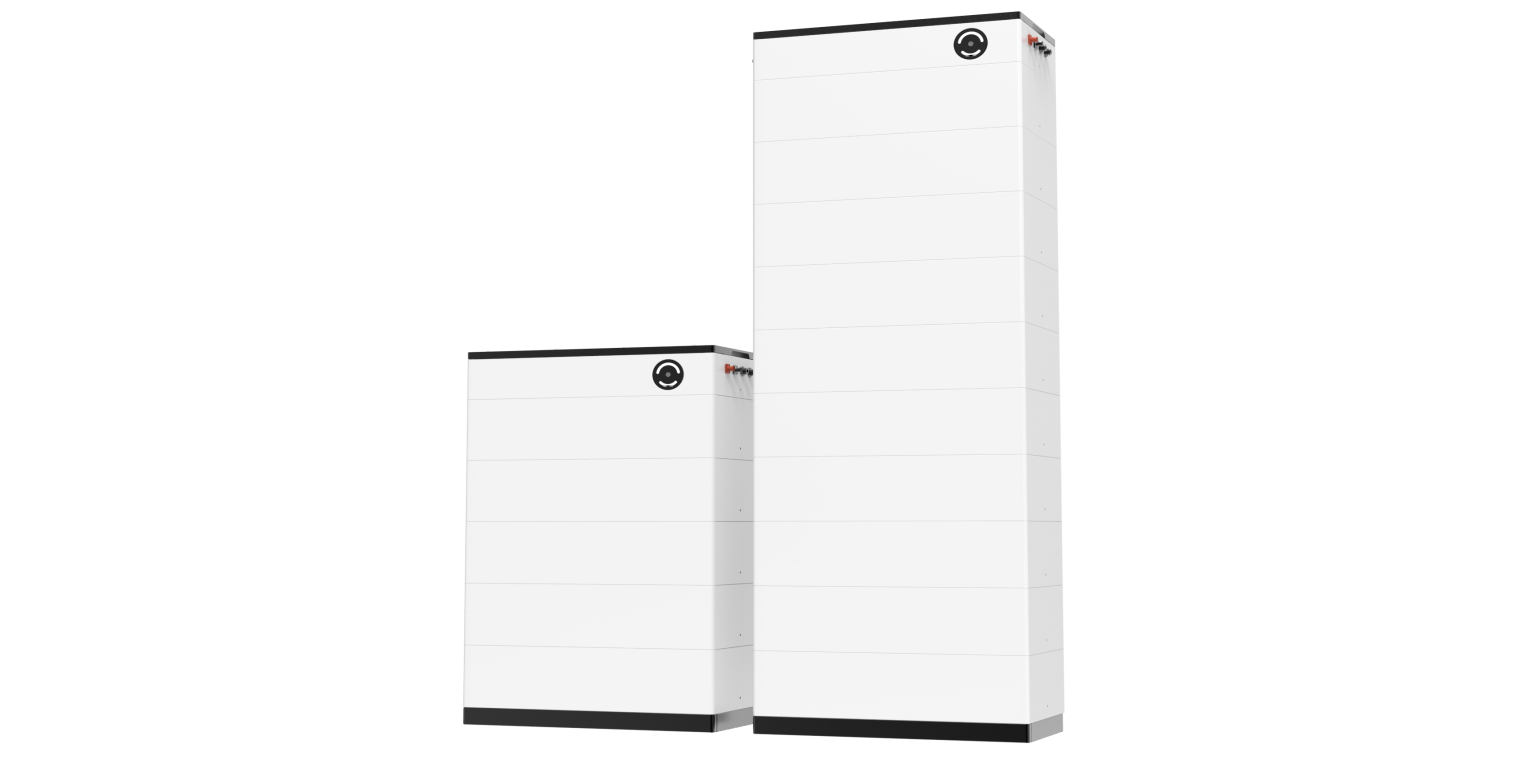

  • EB series battery pack(51.2kWh) (2).png
  • EB series battery pack(51.2kWh) (1).png
  • EB series battery pack(51.2kWh) (3).png
  • EB series battery pack(51.2kWh) (2).png

  • Features

  • System Configuration

  • Battery Module

  • Battery Distribution Unit

  • Features

  • System Configuration

  • Battery Module

  • Battery Distribution Unit

Contact Us
Features
  • IP65-rated for Outdoor Use

    Ready for any environment.

  • Fire-grade Protection

    Because home safety matters.

  • Utilizes Cell-level Passive Balancing

    Battery life extended.

  • Plug-and-Play Installation

    No wiring maze.

  • Maximum 1C Charge/Discharge Rate

    Instant power surge.

  • Modular Design

    Up to 50kWh+ per cluster.

  • 4 Clusters 200kWh+

    Endless possibilities.

System Configuration
Model

EB-10.24KWH-H01

EB-15.36KWH-H01

EB-20.48KWH-H01

EB-30.72KWH-H01

EB-40.96KWH-H01
EB-51.2KWH-H01
Battery cell Type
LFP
Usable battery capacity
10.24kWh
15.36kWh
20.48kWh
30.72kWh
40.96kWh
51.22kWh
Number of Battery Modules
2346810
Nominal voltage
102.4V
153.6V
204.8V
307.2V
409.6V
512V
Operation voltage
89.6~116.8V
134.4~175.2V
179.2~233.6V
268.8~350.4V
358.4~467.2V
448.0~584.0V
Max. Charging/Discharging current
100A (60s)
DOD setting
≤95%
Battery cycle warranty
≥6000
Communication method
CAN
DisplayLEDs
Installation method
Stack, Floor-mounted
Fire safety measure
Built-in fire protection module
Operating Temperature
Charging: 0-50℃; Discharging: -20~50℃
Storage Temperature
0~35℃
Coolling method
Nature
Humidity
5-95%
Altitude
3000m
Size (W*H*D）
725*555*380mm
725*735*380mm
725*915*380mm
725*1275*380mm
725*1635*380mm
725*1995*380mm
Weight
115kg
162.5kg
210kg
305kg
400kg
495kg
Protection degree
IP65
Parallel Connected
4
Battery Module
ModelEM-5.12KWH-H01
Nominal Capacity
5.12kWh
Battery cell capacity
100Ah
Size（W*H*D）

725*180*380mm

Weight
47.5kg
Battery Distribution Unit
ModelEC-BDU-FC-H01
Size（W*H*D）
725*145*380mm
Weight
15kg
Certificate
UN38.3 EMC
