Central Power Conversion System

EH-5000-HB-UD-10~33

Turnkey Station With MV Transformer Integrated (Central PCS, 1500V)

Product Brochure

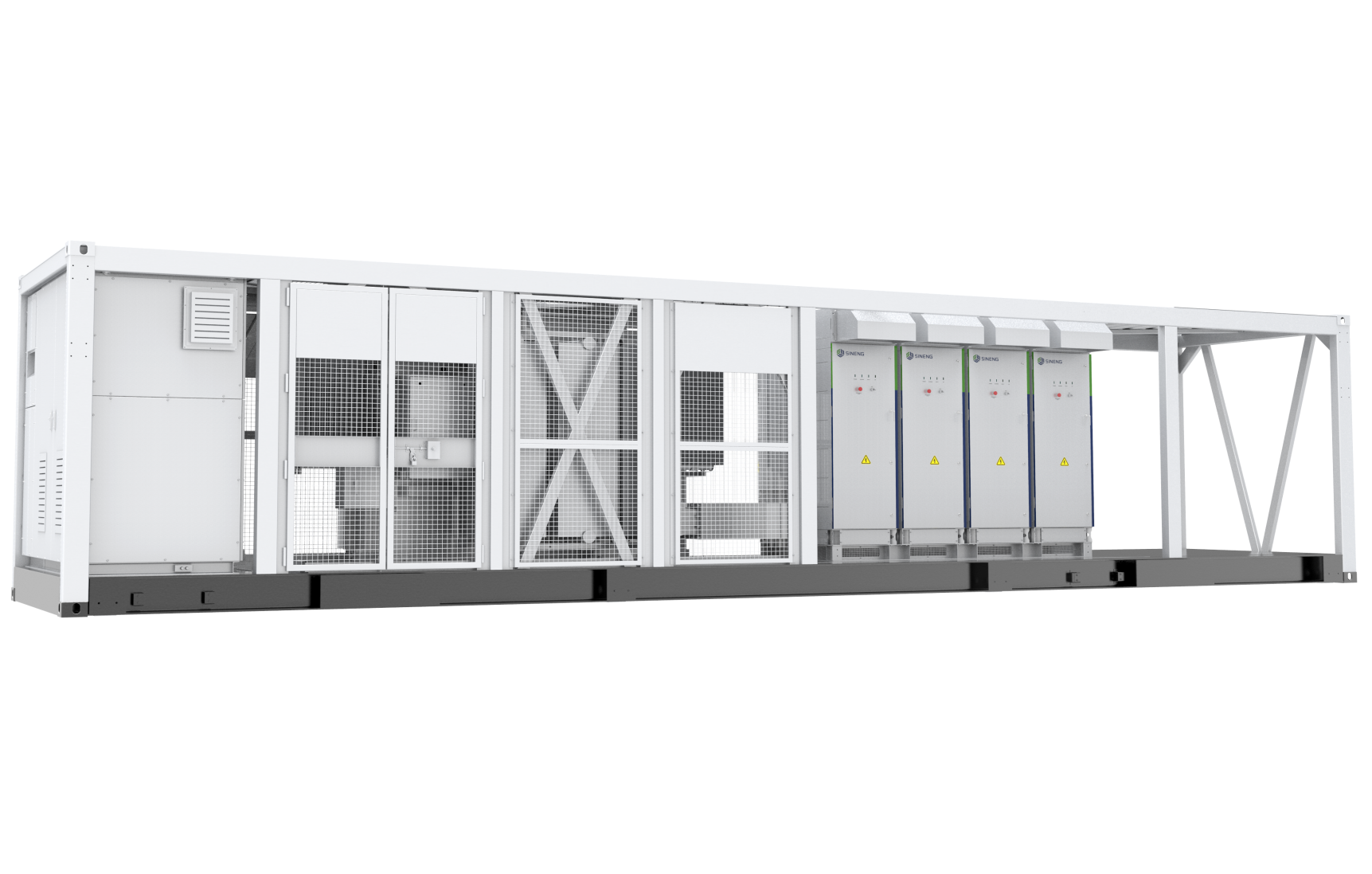

  • EH-5000-HB-UD-10~33 (2).png

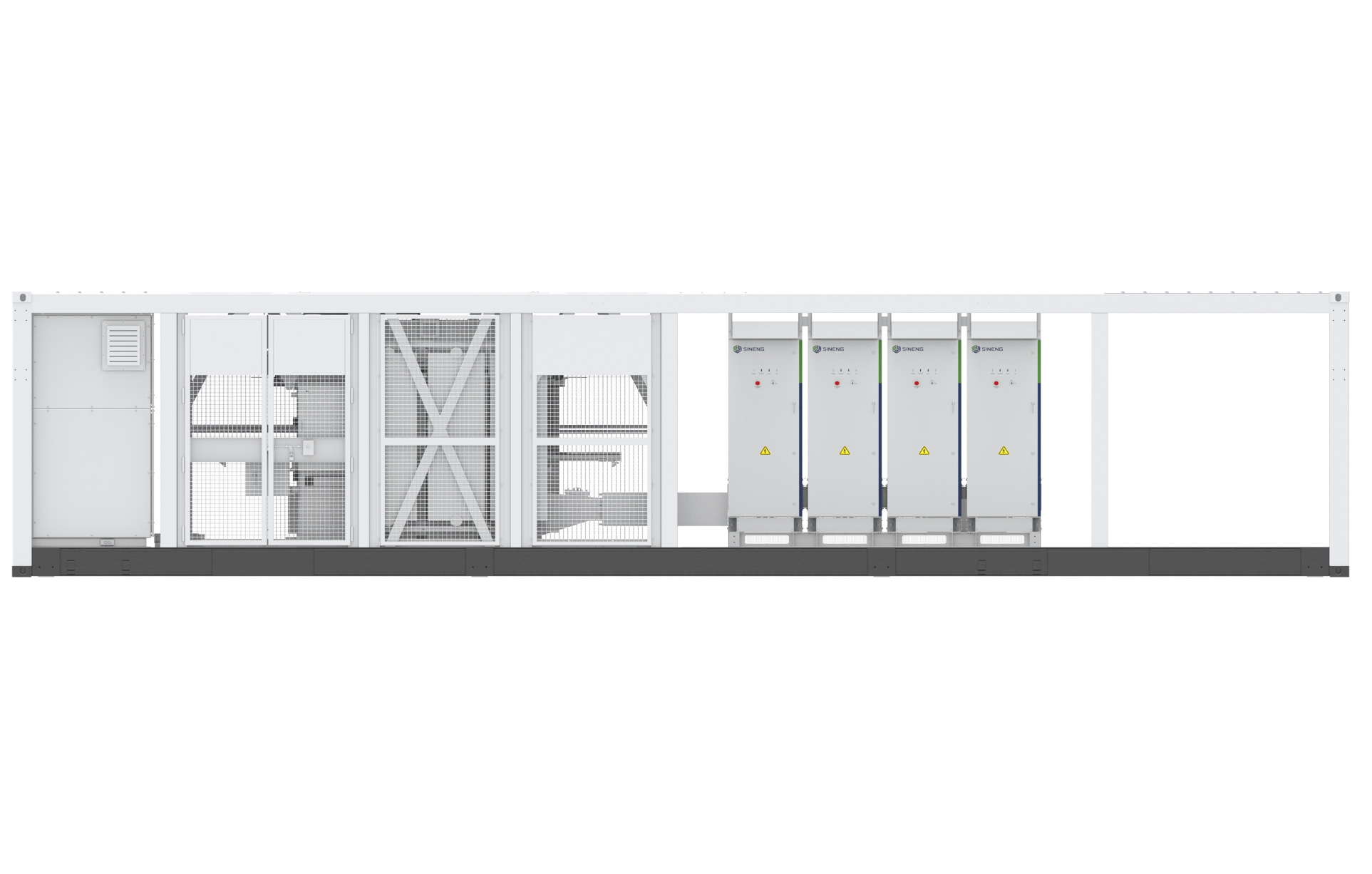

  • EH-5000-HB-UD-10~33 (1).png

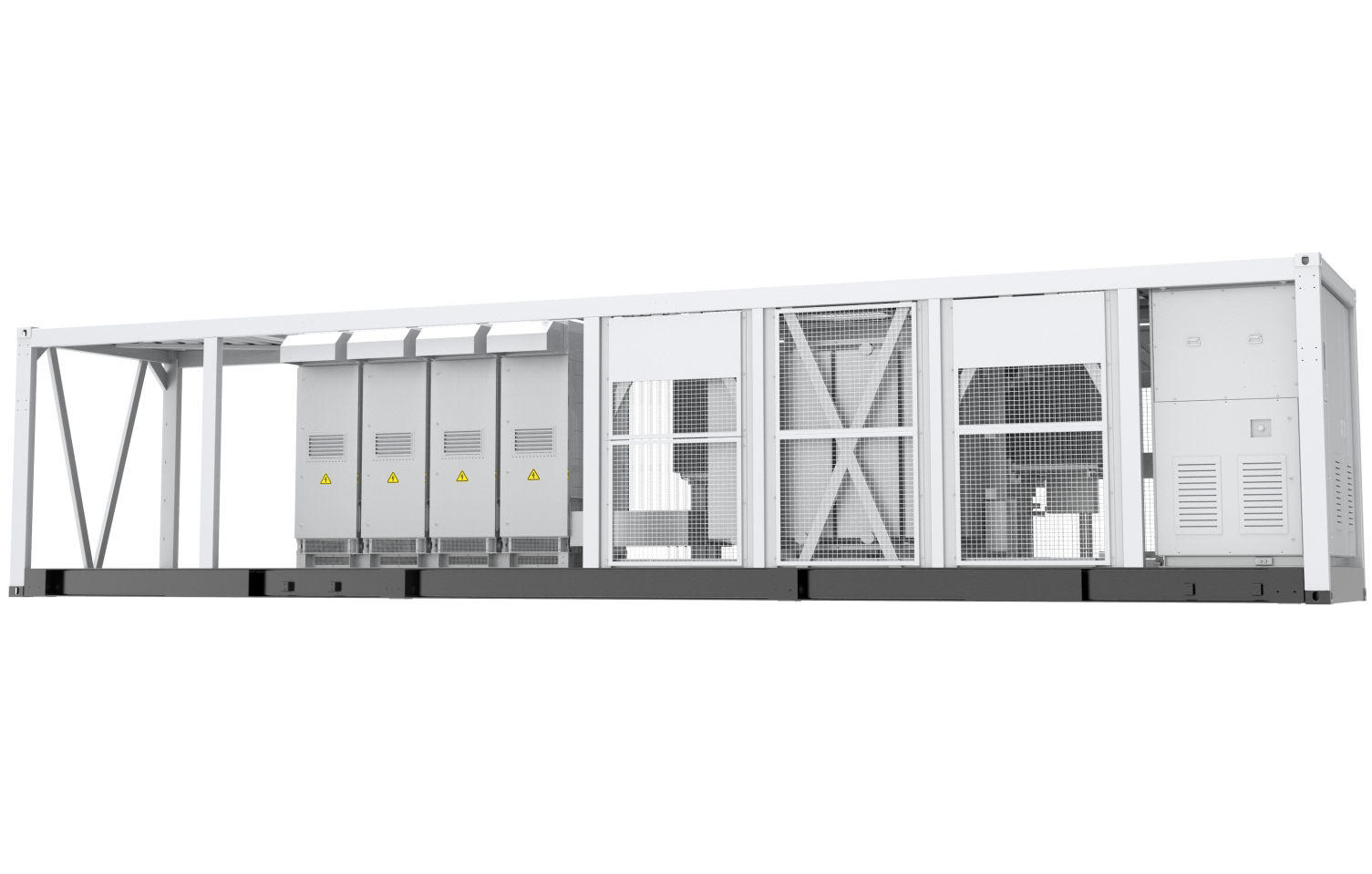

  • EH-5000-HB-UD-10~33 (3).png
  • EH-5000-HB-UD-10~33 (2).png
  • EH-5000-HB-UD-10~33 (1).png
  • EH-5000-HB-UD-10~33 (3).png

  • Features

  • DC parameters

  • AC parameters (On-Grid)

  • AC parameters (Off-Grid)

  • Transformer

  • General data

  • Features

  • DC parameters

  • AC parameters (On-Grid)

  • AC parameters (Off-Grid)

  • Transformer

  • General data

Contact Us
Features

  • · PCS Max. efficiency up to 99%
    · Full reactive power four-quadrant capability

  • · IP65 protection for PCS, IP54 for MV station
    · 40ft container for easy shipment and installation

  • · Support grid-forming function
    · Millisecond-level power response to EMS/SCADA

  • · MV Transformer and RMU pre-assembled
    · Designed for harsh environments

DC parameters
ModelEH-5000-HB-UD-10~33
Max. DC voltage1500V
Max. DC current1403A*4
Battery voltage range1000～1500V
Number of DC input4
AC parameters (On-Grid)
ModelEH-5000-HB-UD-10~33
AC output power5500kVA@35℃, 5000kVA@45℃, 4625kVA@50℃
PCS Nominal AC Voltage
690V, 3W+PE
PCS AC voltage range
607~759V (Adjustable)
PCS Max. AC current
1151A*4
Nominal grid frequency
50/60Hz
Harmonic (THDi)<3% (100% load)
Power Factor
-1～+1
AC parameters (Off-Grid)
ModelEH-5000-HB-UD-10~33
PCS Nominal AC voltage
690V, 3W+PE
PCS AC voltage range
607-759V(Adjustable)
AC voltage distortion
＜3% (100% linear load﹚
DC voltage component
<0.5% Un (Linear balance load)
Unbalanced load capacity
100%
Nominal grid frequency50/60Hz
Transformer
ModelEH-5000-HB-UD-10~33
Isolation modeOil-Immersed Transformer
Transformer rated power
5500kVA@30℃, 5000kVA@45℃, 4625kVA@50℃
LV/MV voltage
0.69kV/33kV (10~33kV optional)
Transformer vector
Dy11
Transformer cooling type
ONAN
Oil type
Mineral oil
General data
ModelEH-5000-HB-UD-10~33
PCS Max. efficiency
99%
PCS European efficiency
98.5%
Ingress protection rating
IP54
Operating temperature range
-40~+60℃ (>45℃ derating)
Relative humidity
0~100% (no condensing)
Max. altitude
＜2000m (standard) / 2000~5000m (optional)
Cooling method
Forced air cooling
Communication interface
RS485/CAN/Ethernet/Bluetooth

Dimensions (W*D*H)

12192×2438×2896mm
Weight
31t
