Central Inverter

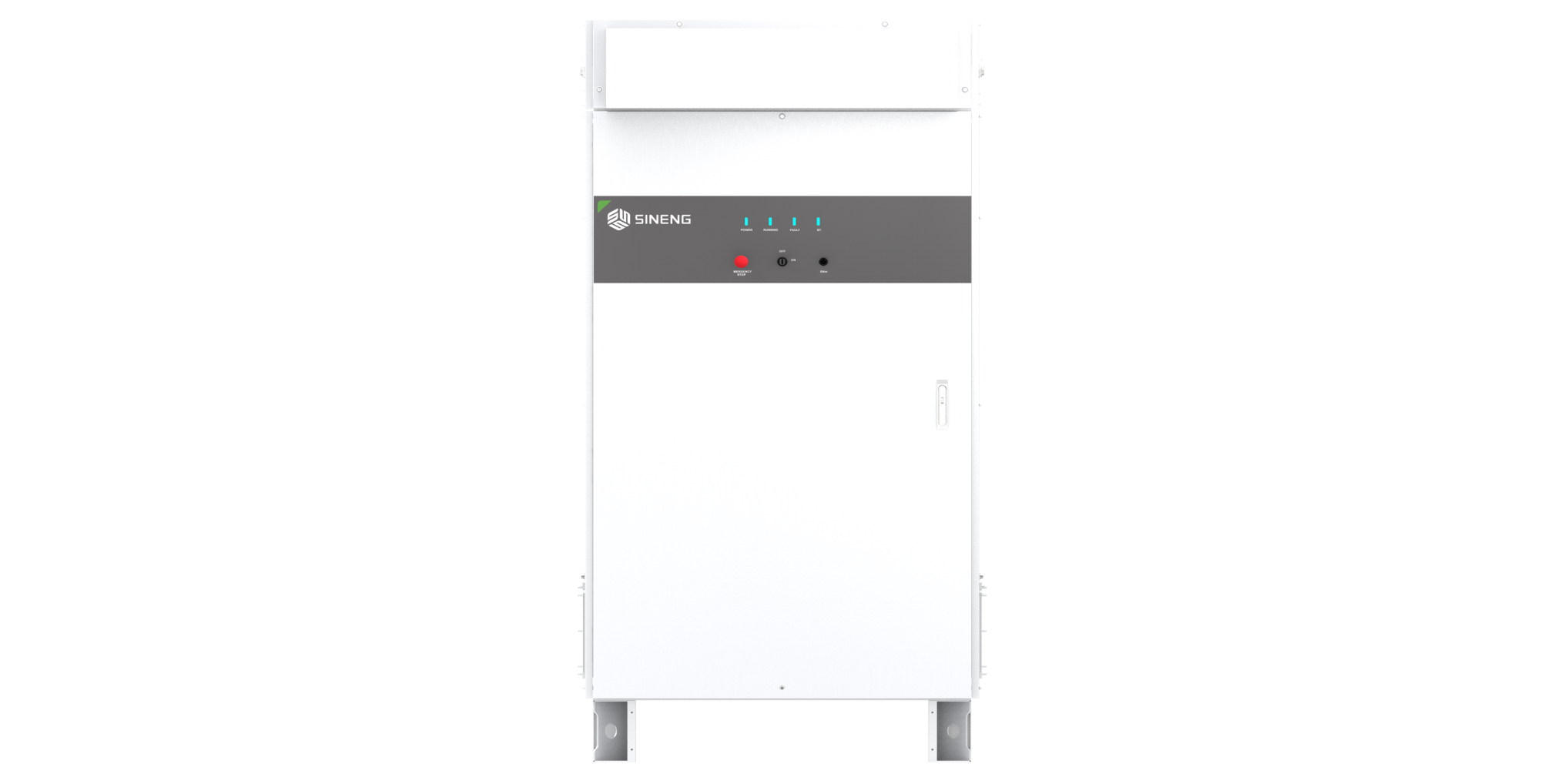

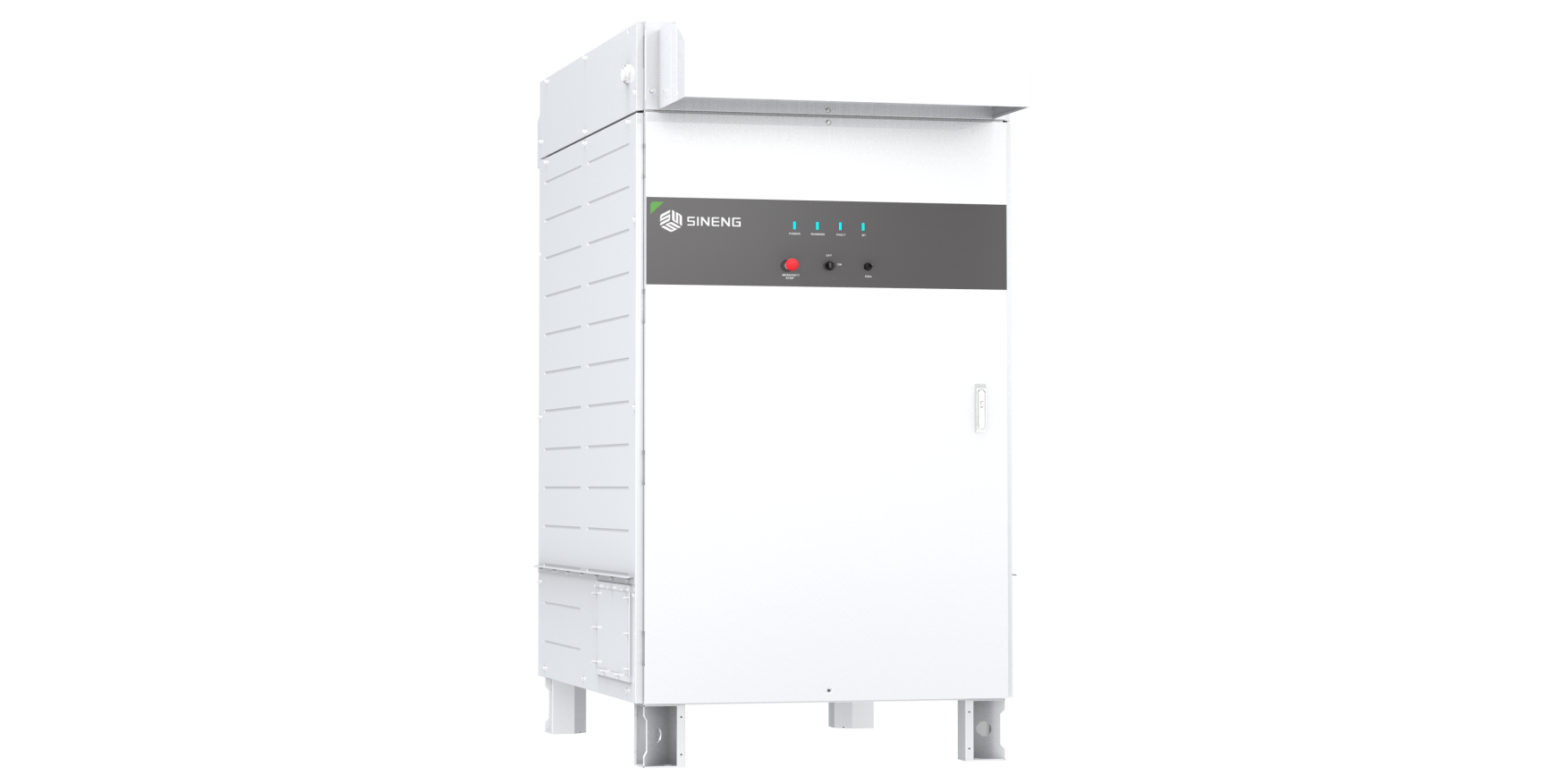

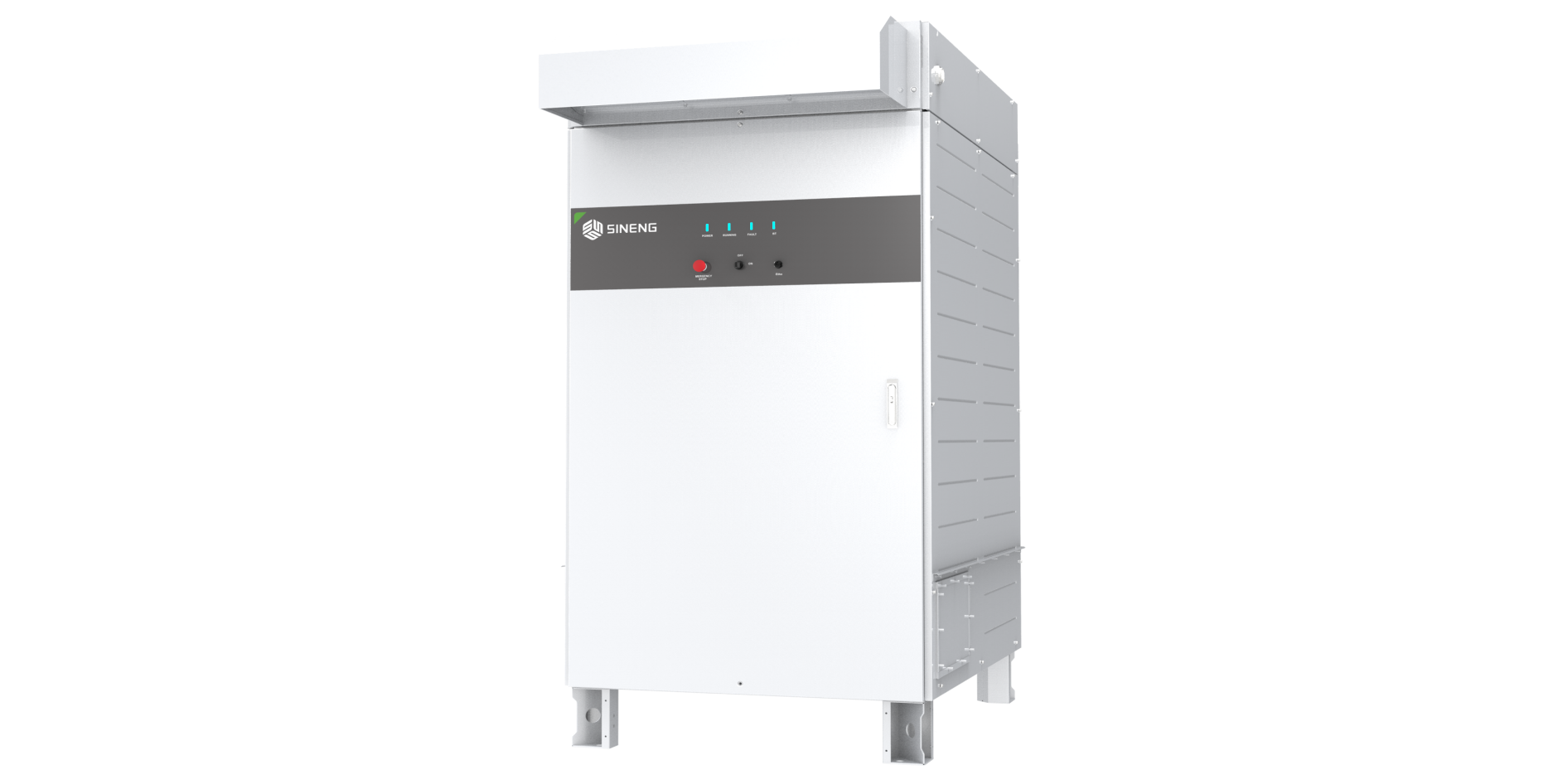

EP-2400-HB-M1

EP Series 1500V Outdoor Central Inverter

Product Brochure
  • EP-2400-HB-M1 (1).png
  • EP-2400-HB-M1 (3).png
  • EP-2400-HB-M1 (2).png
  • EP-2400-HB-M1 (1).png
  • EP-2400-HB-M1 (3).png
  • EP-2400-HB-M1 (2).png

  • Features

  • Input (DC)

  • Output (AC)

  • Protection

  • Efficiency

  • General Data

  • Product Video

  • Features

  • Input (DC)

  • Output (AC)

  • Protection

  • Efficiency

  • General Data

  • Product Video

Contact Us
Features
  • f2icon04.svg
    More power generation

    · Max. efficiency 99.02%, Euro efficiency 98.8%
    · Pn no derating at 52 degrees
    · Built-in Anti-PlD, reducing system losses

  • f2icon05.svg
    Low system cost

    · DC 1500V system, low system cost
    · Smart forced Air cooling
    · Max. DC/AC ratio up to 1.8

  • f2icon06-923.svg
    High reliability

    · Protection level: lP65
    · Module design, easy for O&M
    · Current sensor for each DC input, more reliable for monitoring and control

  • f2icon07.svg
    Grid friendly

    · Support night SVG
    · Advance LVRT and HVRT function
    · Active & Reactive power control

Input (DC)
ModelEP-2400-HB-M1
Max. PV input voltage1500V
Max. input current3117A
MPP voltage range for nominal power
938~1300V
Number of MPPT1
Number of DC inputs10 (Maximum: 16）
Output (AC)
ModelEP-2400-HB-M1
AC output power2400kVA@51℃/2880kVA@23℃
Rated grid voltage660V
Grid voltage range561~726V
Max Output current2519A
Rated grid frequency/range
50Hz±5Hz/60Hz±5Hz
Output current harmonic (at nominal power)
<1%
DC current injection＜0.5%In
Power factor at nominal power/range>0.99/0.8 lagging to 0.8 leading
Protection
ModelEP-2400-HB-M1
DC input protectionLoad break switch+fuse
AC output protectionCircuit breaker

Over-voltage protection

DC Type II/AC Type II
Leakage current monitoringYes
Ground fault monitoringYes
Grid monitoringYes
Insulation monitoringYes
Overheat protectionYes
Night SVG functionOptional
Efficiency
ModelEP-2400-HB-M1
Max. efficiency99.02%
EU efficiency98.8%
General Data
ModelEP-2400-HB-M1
Self-consuming in standby＜300W
Protection levelIP65
Operating temperature
-30℃~+60℃
Cooling methodTemperature controlled forced air cooling
Max. operating altitude4500m
DisplayStandard: LED indicator, Bluetooth+APP
Communication portRS485/Ethernet
Dimensions (W×H×D)2193×2405×1150mm
Weight1750kg
