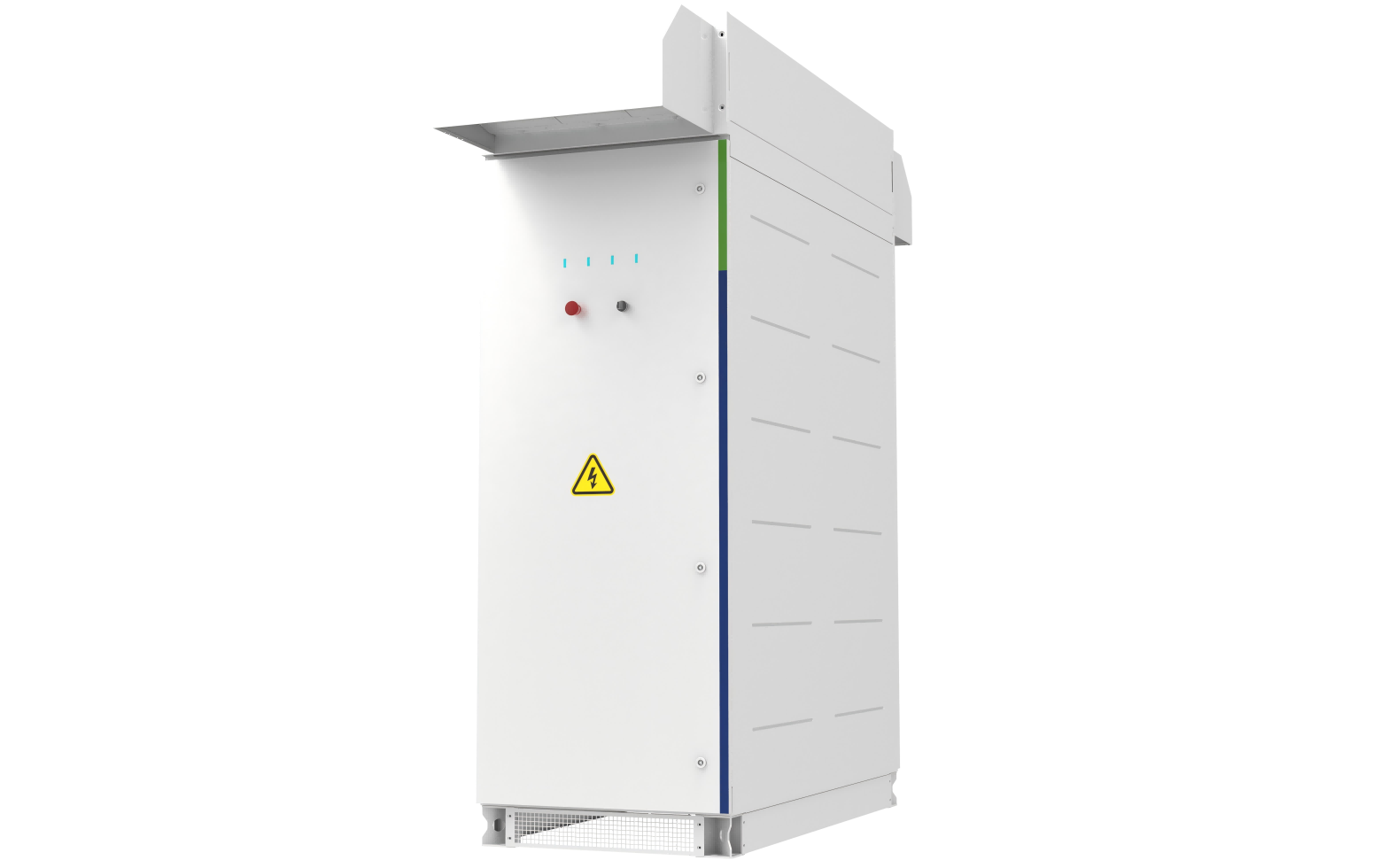

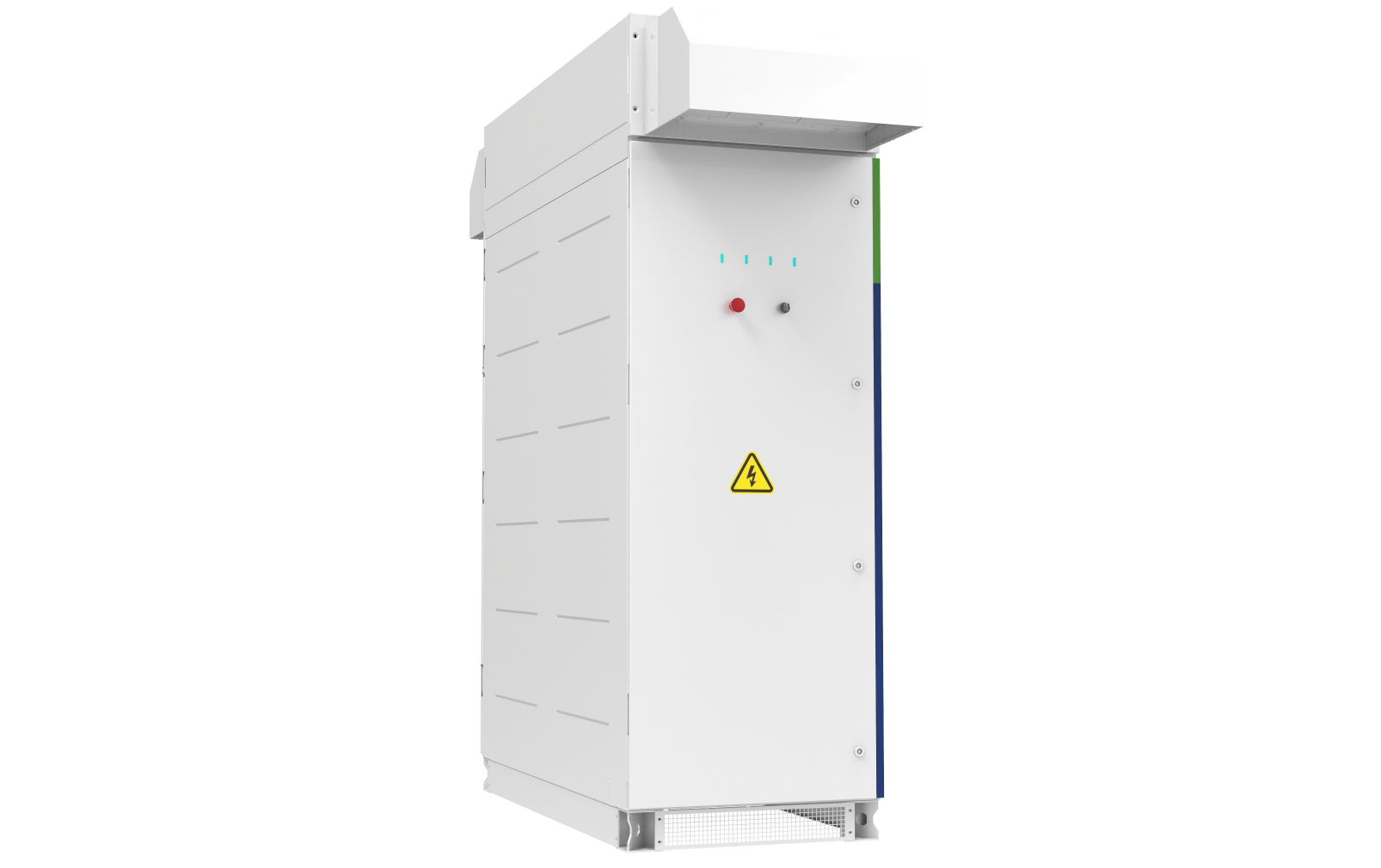

Central Power Conversion System

EH-1725-HB-UD

Power Conversion System (Central PCS, 1500V)

Product Brochure
  • 图片轮播-左.png
  • 图片轮播-中.png
  • 图片轮播-右.png
  • 图片轮播-左.png
  • 图片轮播-中.png
  • 图片轮播-右.png

  • Features

  • DC Parameters

  • AC parameters (On-Grid)

  • AC parameters (Off-Grid)

  • General data

  • Features

  • DC Parameters

  • AC parameters (On-Grid)

  • AC parameters (Off-Grid)

  • General data

Contact Us
Features

  • · Max. efficiency up to 99%
    · Full reactive power four-quadrant capability

  • · IP65 protection degree
    · Intelligent multi-stage fan speed regulation

  • · Support grid-forming function
    · Millisecond-level power response to EMS/SCADA

  • · Modular design for easy O&M
    · Use alone or in combination with MV station

DC Parameters
ModelEH-1725-HB-UD
Max. DC voltage1500V
Max. DC current1936A
Battery voltage range1000～1500V
Number of DC input1
AC parameters (On-Grid)
ModelEH-1725-HB-UD
AC output power1898kVA@30℃, 1725kVA@45℃, 1600kVA@50℃
Nominal AC voltage690V, 3W+PE
AC voltage range607~759V (Adjustable)
Max. AC output current1588A
Nominal grid freqency50/60Hz
Harmonic (THDi)<1.5% (100% load)
Power factor-1～+1
AC parameters (Off-Grid)
ModelEH-1250-HB-UD
Nominal AC voltage690V,3W+PE
AC voltage range607-759V(Adjustable)
AC voltage distortion<1.5% (100% linear load)
DC voltage component<0.5% Un (Linear balance load)
Unbalanced load capacity100%
Nominal grid frequency50/60Hz
General data
ModelEH-1250-HB-UD
Isolation modeTransformerless
Max. efficiency99%
European efficiency98.5%
Ingress protection ratingIP65
Operating temperature range-40~+60℃ (>45℃ derating)
Relative humidity0~100% (no condensing)
Max. altitude5000m (>3000m derating)
Cooling methodForced air cooling

Communication interface

RS485/CAN/Ethernet/Bluetooth
Dimensions (W*D*H)725x1250x2350mm
Weight1100kg
