Hybrid Inverter & Battery

EB-6.4~25.4KWH-HA

EB series battery pack

Product Brochure

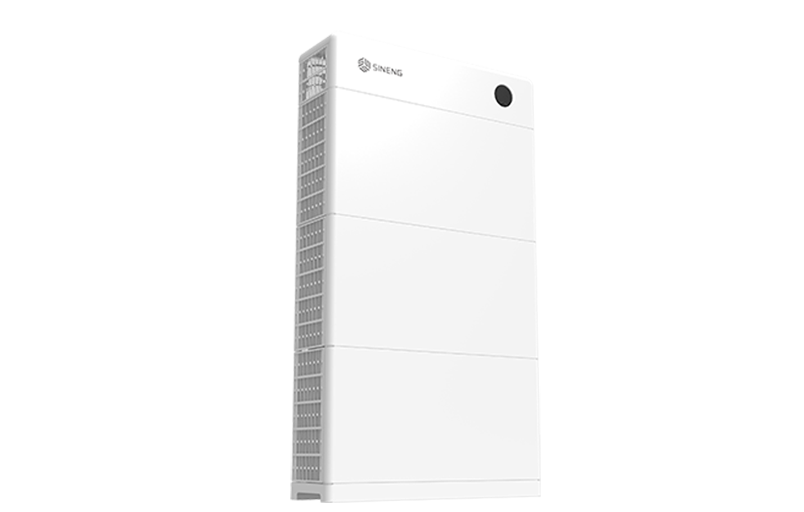

  • EB-6.4~25.4KWH-HA (1)-1.png
  • EB-6.4~25.4KWH-HA (4)-1.png

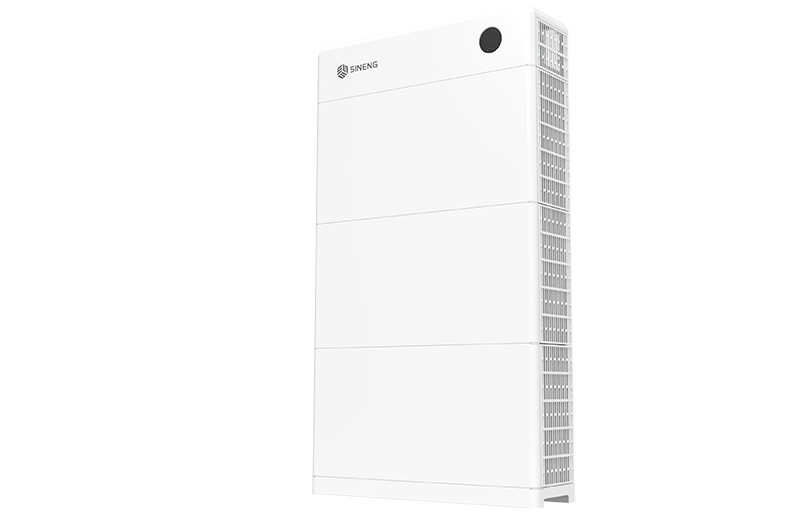

  • EB-6.4~25.4KWH-HA (3)-1.png
  • EB-6.4~25.4KWH-HA (1)-1.png
  • EB-6.4~25.4KWH-HA (4)-1.png
  • EB-6.4~25.4KWH-HA (3)-1.png

  • Features

  • Configuration

  • Battery Module

  • Features

  • Configuration

  • Battery Module

Contact Us
Features
  • SAFE AND RELIABLE.svg
    Safe and Reliable

    · Automotive-grade quality battery cells, meet the automotive-grade safety standards
    · Equipped with a lithium battery breathing valve to effectively adjust the gas pressure inside the battery
    · Controllable short-circuit current: high-frequency electromagnetic isolation technology between battery packs
    · Large capacity battery, long cycle life, design life up to 10 years

  • 产品手册.svg
    User-Friendly Design

    · Stackable module design, quick plug and play betweenpacks, screw-free installation
    · Power module built-in each battery pack, batteries parallelconnection, flexible extension
    · Al optimized & fast commissioning, commissioning timeless than 5mins
    · Power module built-in each pack, support mixing of oldand new batteries and different SOH/SOC batteries

Configuration
ModelEB-6.4KWh-HA
EB-12.8KWh-HAEB-19.2KWh-HAEB-25.4KWh-HA
Configuration6S1P
6S2P6S3P6S4P
Battery capacity
6.53kWh
13.06kWh19.56kWh26.11kWh
Usable battery capacity
6.4kWh12.8kWh19.2kWh25.4kWh
Dimension (W*H*D)
750*605*251.7mm750*975*251.7mm750*1345*251.7mm750*1715*251.7mm
Weight87kg157kg227kg297kg
Operation temperature
-15~50℃
Storage temperature-20~50℃
Humidity0~95%RH
Installation methodGround-mounted
Protection degreeIP65
DisplayLED & APP
Noise emission＜30dB within 1m
Battery Module
ModelEB-6.4KWh-HAEB-12.8KWh-HAEB-19.2KWh-HAEB-25.4KWh-HA
ModelEM-6.4kWh-HA
Battery cell TypeLFP 3.2V/335Ah 1P6S
Nomital Voltage400V
Outout voltage Range

350~470V

Rated charging/discharging
3kW
Installation methodGround-mounted
Weight
70kg
TopologyIsolated
