String Power Conversion System

EH-8600-HA-MR

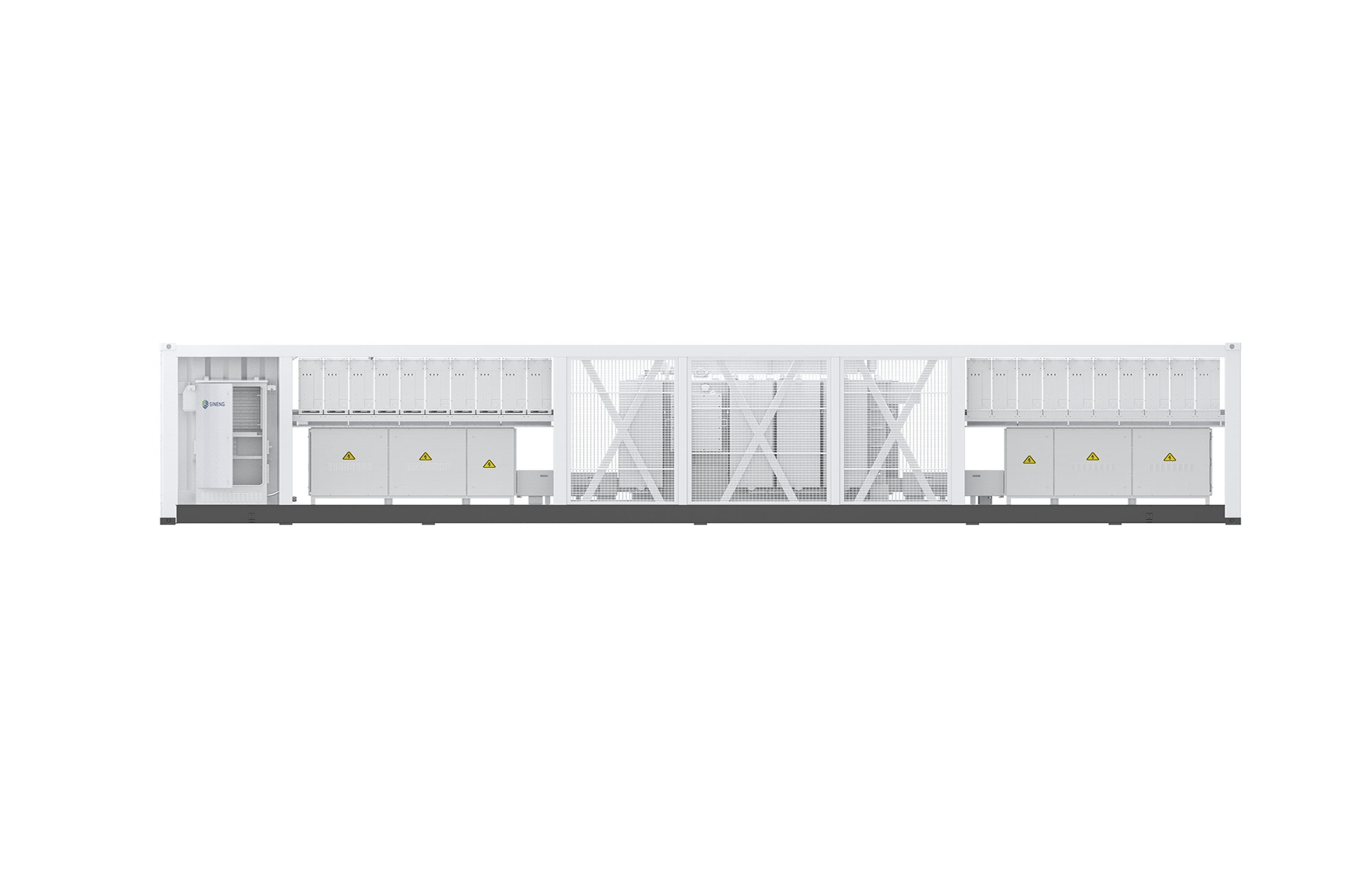

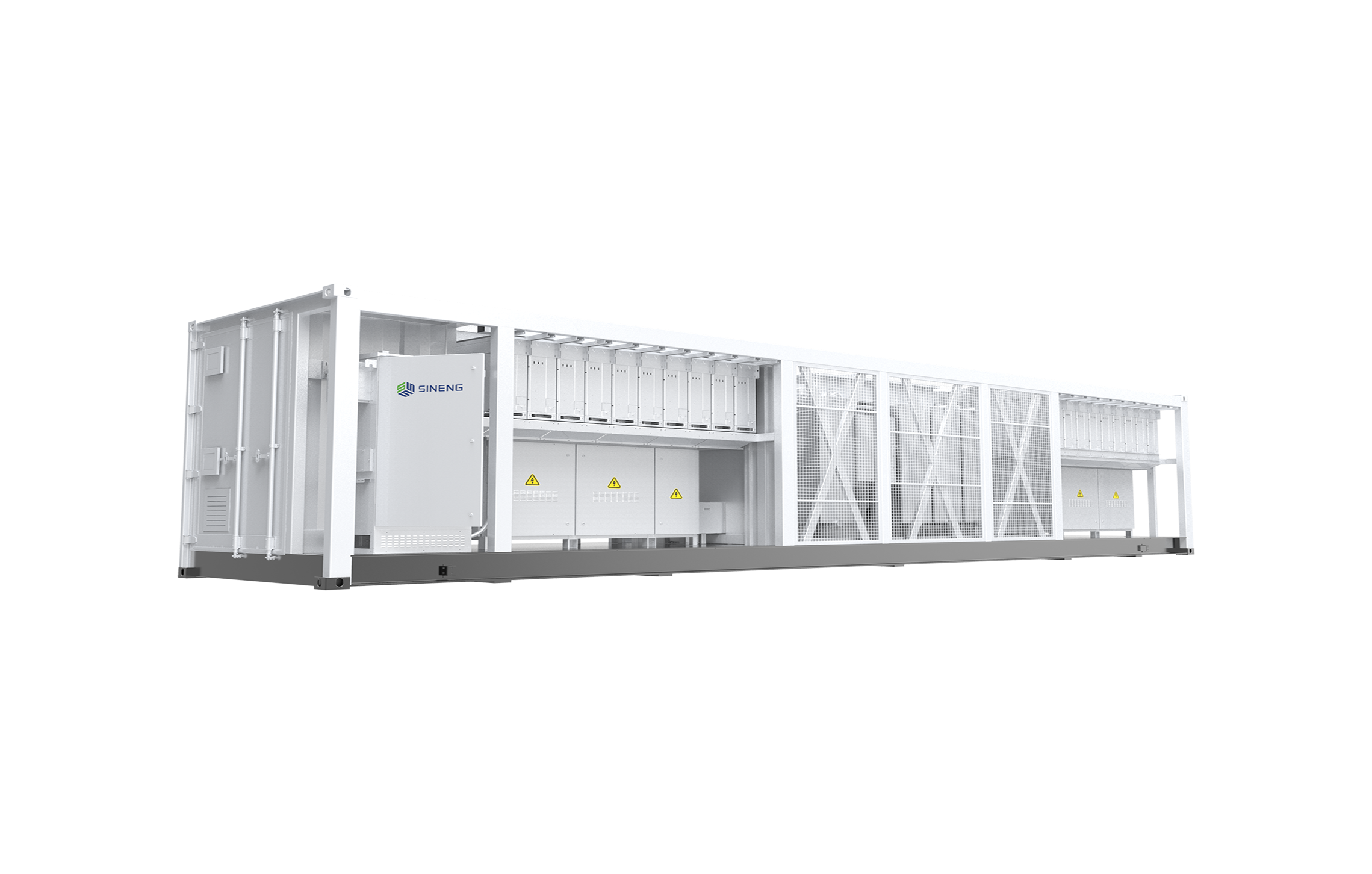

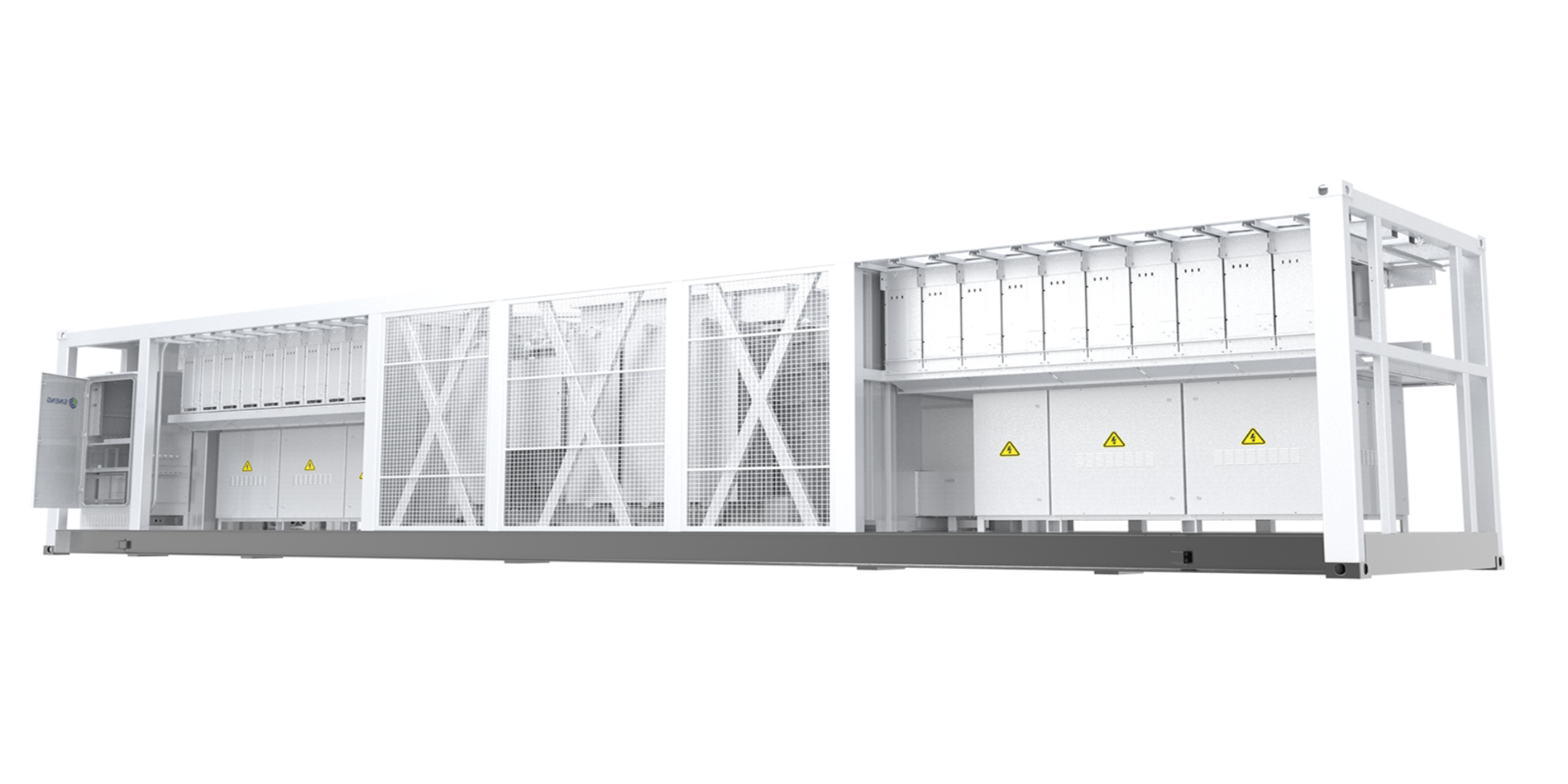

Turnkey Station With MV Transformer Integrated (String PCS, 1500V)

Product Brochure
  • EH-8600-HA-MR-10~33 (1).png
  • EH-8600-HA-MR-10~33 (2).png
  • EH-8600-HA-MR-10~33 (3).png
  • EH-8600-HA-MR-10~33 (1).png
  • EH-8600-HA-MR-10~33 (2).png
  • EH-8600-HA-MR-10~33 (3).png

  • Features

  • DC Parameters

  • AC parameters (On-Grid)

  • AC parameters (Off-Grid)

  • Transformer

  • General data

  • Features

  • DC Parameters

  • AC parameters (On-Grid)

  • AC parameters (Off-Grid)

  • Transformer

  • General data

Contact Us
Features

  • · 40ft container for easy shipment and installation · Achieve higher battery capacity utilization · Improve SOC imbalance between different battery clusters · Built in sub-array management unit support IEC 61850 · Power module easily replacement reduce repair time · Allow expand new battery cluster to the old system · Battery system achieve more deep DOD ability · More easily to perform periodic battery calibration

DC Parameters
ModelEH-8000-HA-MR-10~33
EH-8600-HA-MR-10~33
Max. DC voltage1500V
Max. DC current224.5A*40
241.3A*40
Battery voltage range1000～1500V
Number of DC input40
AC parameters (On-Grid)
ModelEH-8000-HA-MR-10~33EH-8600-HA-MR-10~33
AC output power220kVA*40@35℃, 200kVA*40@45℃
236.5kVA*40@35℃, 215kVA*40@45℃
Nominal AC voltage690V,3W+PE
AC voltage range607~759V (Adjustable)
Max. AC output current 184.1A*40@35℃, 167.4A*40@45℃
197.9A*40@35℃, 179.9A*40@45℃,
Nominal grid frequency50/60Hz
Harmonic (THDi)<1.5% (100% load)
Power Factor-1～+1
AC parameters (Off-Grid)



ModelEH-8000-HA-MR-10~33EH-8600-HA-MR-10~33
Nominal AC voltage690V,3W+PE
AC voltage range607-759V(Adjustable)
AC voltage distortion<1.5% (100％ linear load)
DC voltage component<0.5% Un (Linear balance load)
Unbalanced load capacity100% (Linear load)
Nominal grid frequency
50/60Hz
Transformer


ModelEH-8000-HA-MR-10~33EH-8600-HA-MR-10~33
Isolation mode
Oil-Immersed Transformer
Transformer rated power
8800kVA@35℃, 8000kVA@45℃
9460kVA@35℃, 8600kVA@45℃
LV/MV voltage
0.69kV/33kV (10kV~33kV Optional)
Transformer vector
Dy11y11
Transformer cooling type
ONAN
Oil type
Mineral oil


General data
ModelEH-8000-HA-MR-10~33EH-8600-HA-MR-10~33
PCS Max. efficiency
99%
PCS European efficiency
98.5%
Ingress protection rating
IP54
Operating temperature range
-40~+60 ℃ (>45℃ derating)
Relative humidity
0~100%(no condensing)
Max. altitude＜2000m (standard) / 2000~4000m (optional)
Cooling methodForced air cooling
Communication interface
RS485/CAN/Ethernet
Dimensions (W*D*H)12192×2438×2896mm
Weight29t
30t
