Hybrid Inverter & Battery

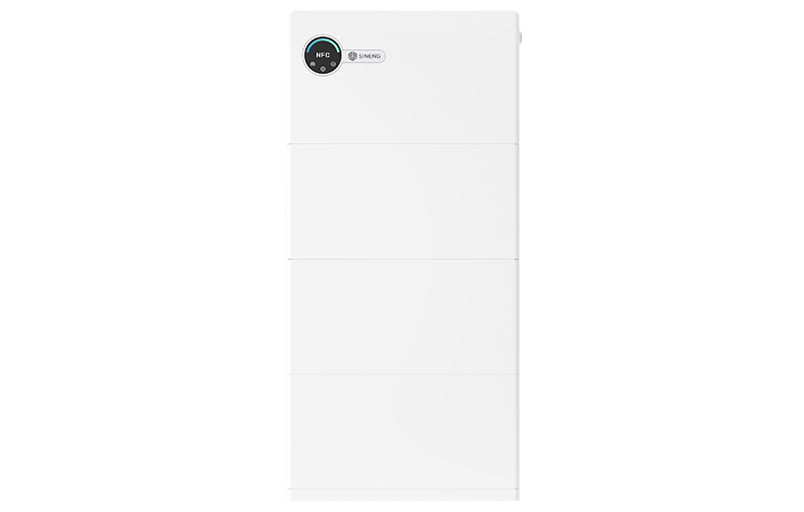

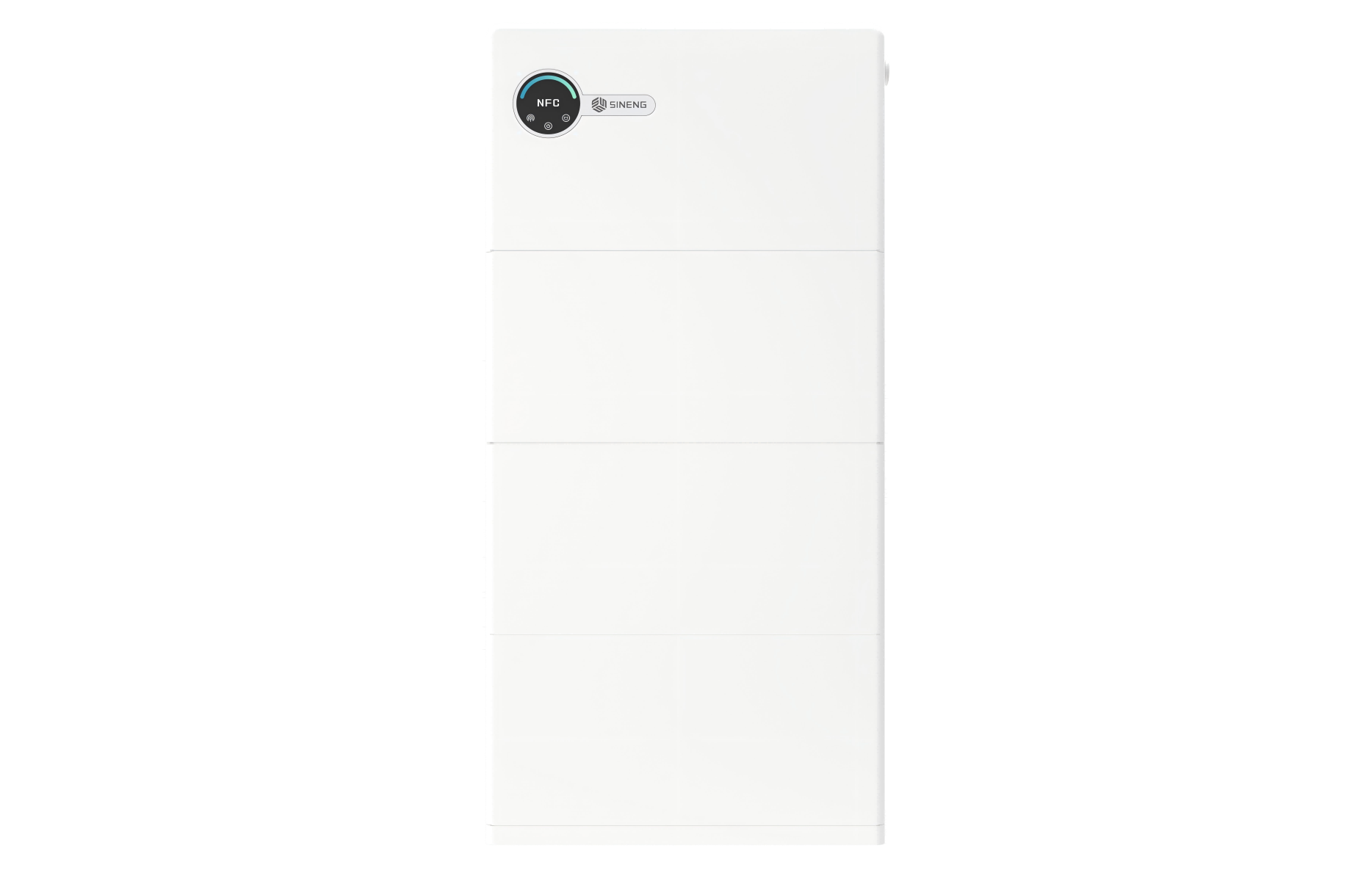

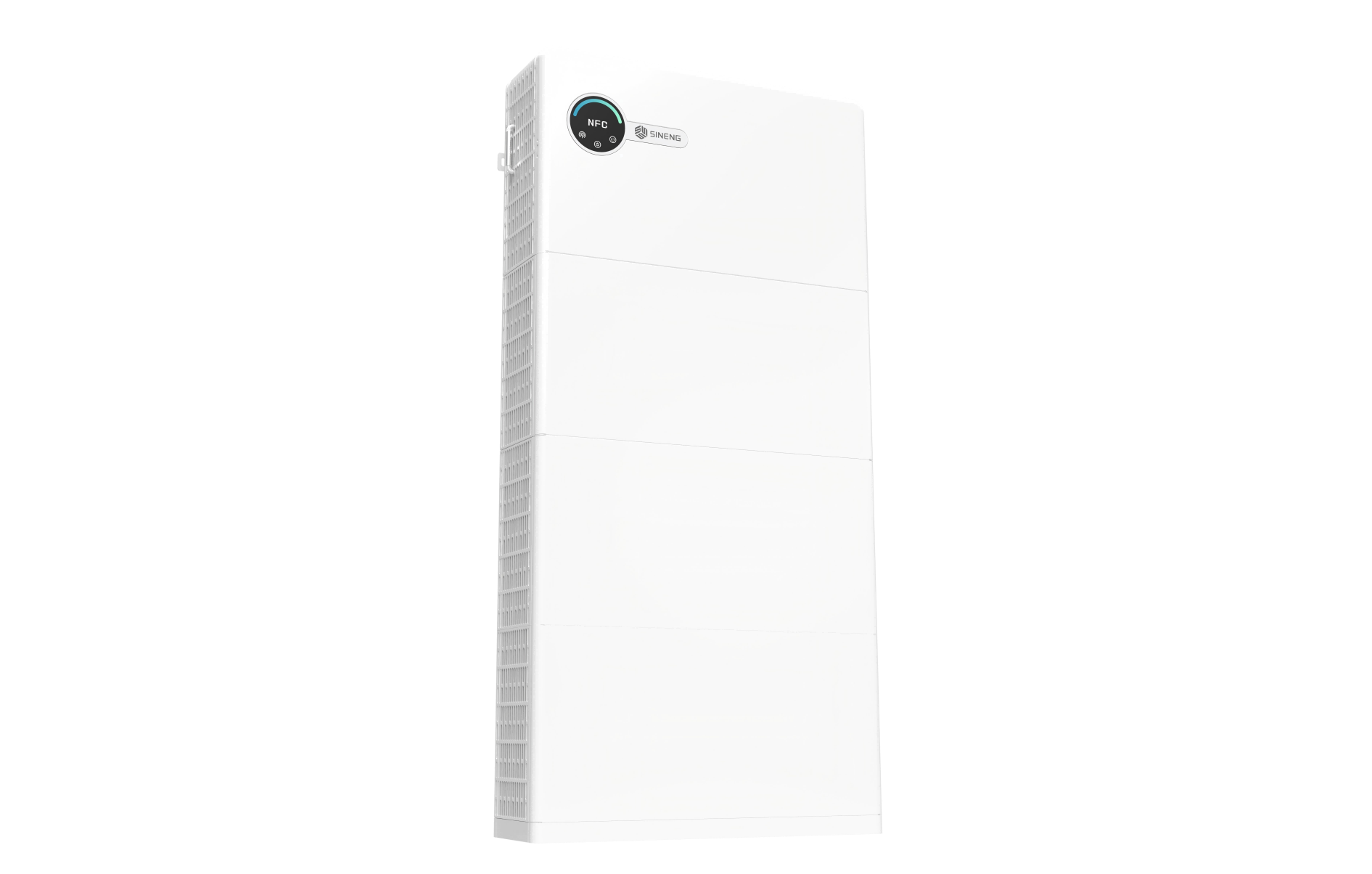

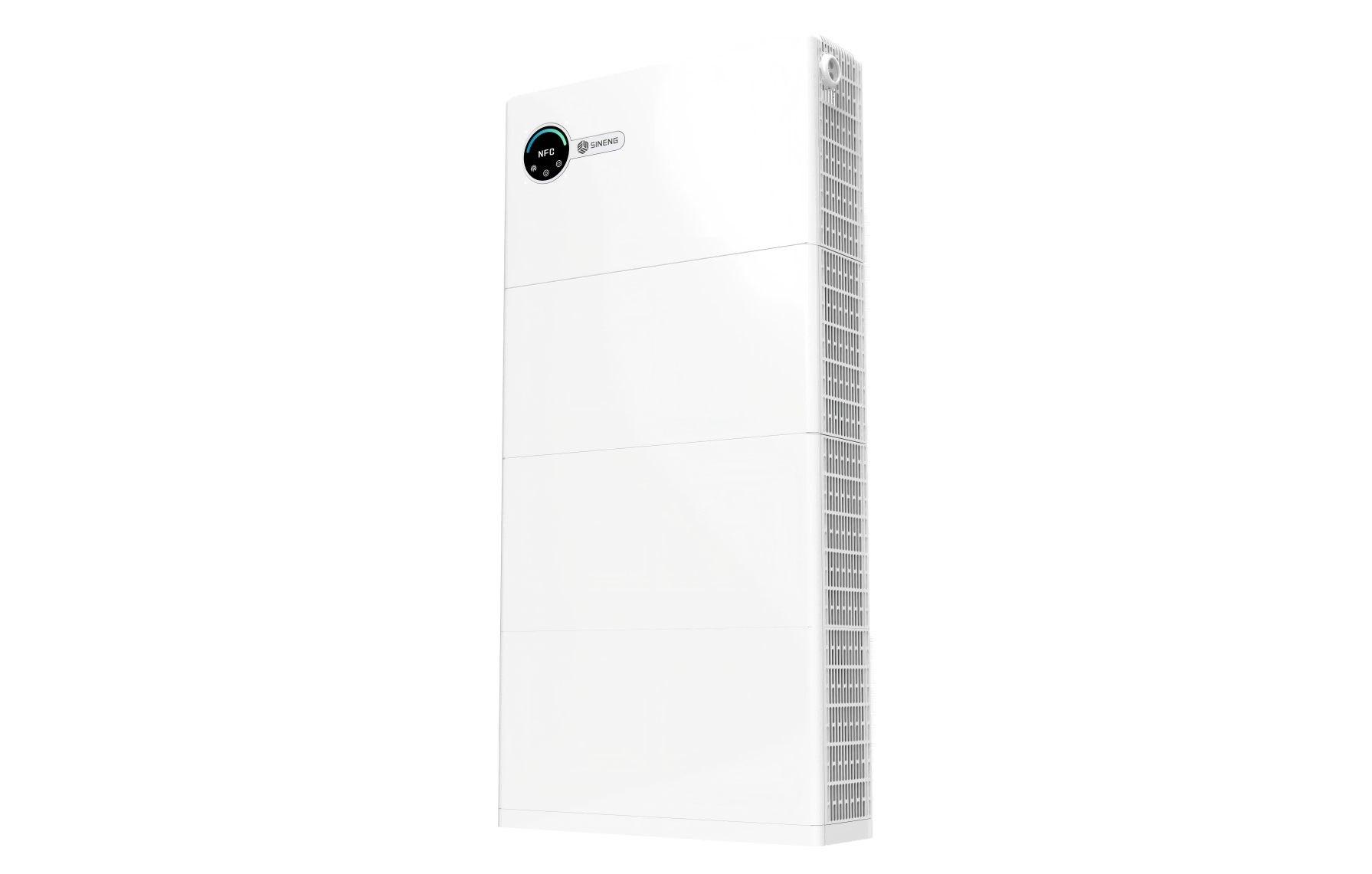

Residential All-in-One

5.0/6.0/8.0/10/12/15kW

6.4/12.8/19.2/25.7kWh

Product Brochure
  • all-in-one 产品封面.png
  • Residential All-in-One (3)-1.png
  • Residential All-in-One (1)-1.png
  • all-in-one 产品封面.png
  • Residential All-in-One (3)-1.png
  • Residential All-in-One (1)-1.png

  • Features

  • System Configuration

  • Power Controller

  • Model

  • Features

  • System Configuration

  • Power Controller

  • Model

Contact Us
Features
  • SAFE AND RELIABLE.svg
    Safe and Reliable

    · Up to 3 MPPTs, and built-in arc-fault circuit interrupter& string current detection
    · IP65 for outdoor installation and built-in multiple protection measures

  • f2icon06-923.svg
    Strong Adaptability and Long Life

    · Large-capacity battery with automotive-grade, long-lifebattery cells designed for a lifespan of up to 10 years.
    · Up to 18A maximum PV input current, compatible with mainstream PV modules.

  • 产品手册.svg
    User-Friendly Design

    · Modular stacking design and quick plugging design facilitate easy installation, significantly reducing installation time.
    · DC/DC module integrated each battery pack,eliminate the barrel effect and facilitate the mixing of old and new batteries.
    · Power plant set up and debug through enjoysolar and multiple power consumption schemes tailored to various scenarios.

System Configuration
System Configuration[SN 5.0/6.0/8.0/10/12/15 HTC]+N*[EM-6.4KWH-HA]
Power ControllerSN5.0/6/0/8.0/10/12/15HTC
Number of power controller1
Battery modulesEM-6.4KWH-HA
Number of battery modules1
2
34
Battery storage capacity6.53kWh13.06kWh19.56kWh26.11kWh
Usable battery capacity6.4kWh19.56kWh19.2kWh25.4kWh
Rated charging/discharging power3kW6kW9kW12kW
Weight100.25/102.3kg170.25/172.3kg240.25/242.3kg310.25/312.3kg
Dimension (W*H*D)750*865*251.7mm750*1235*251.7mm750*1605*251.7mm750*1975*251.7mm
Base dimensions (W*H*D)750*50*251.7mm
DisplayLED & APP & NFC
CommunicationWifi/4G/Ethernet, RS485
Protection degreeIP65


Power Controller
Power ControllerSN5.0HTSN6.0HTSN8.0HTSN10HTSN12HTSN15HT
Recommended max. PV power (STC)7.5kWp9.0kWp12kWp15kWp18kWp22.5kWp
Startup voltage180V
MPPT operating voltage range160-950V
Number of PV inputs23
Max. PV input current18A
Max. short circuit current25A
Nominal grid voltage & frequency220/380V, 230/400V    50/60Hz
Nominal grid output power5kW6kW8kW10kW12kW15kW
Max. grid output power5.5kVA6.6kVA8.8kVA11kVA13.2kVA16.5kVA
Max. grid output current
8.4A10A13.4A16.7A20A25A
Max. input power from grid22.5kVA
Power factor range0.8 lagging-0.8 leading
Nominal output power(Back-up)5kW6kW8kW10kW12kW15kW
Peak output power(Back-up）7.5kVA, 60S9kVA, 60S12kVA, 60S15kVA, 60S18kVA, 60S18kVA, 60S
Switch time to EPS mode10ms
Cooling methodNatural
Smart fan cooling
Operation temperature-25℃~60℃
Weight30.25kg
32.3kg
Dimensions (W*H*D)780*443.5*218mm
ProtectionAnti islanding protection, Leakage current protection, PV reverse protection, Arc-fault circuit-interrupter, Surge protection(DC Ⅱ /AC Ⅱ)


Model
ModelEM-6.4KWH-HA
Battery cell typeLFP 3.2V/335Ah   1P6S
Output voltage range350~470V
Rated charging/discharging power3kW
Operation temperature-15~50℃
Installation methodGround-mounted
Weight70kg
TopologyIsolated
