Central Power Conversion System

EH-10000-HB-UD-10~33

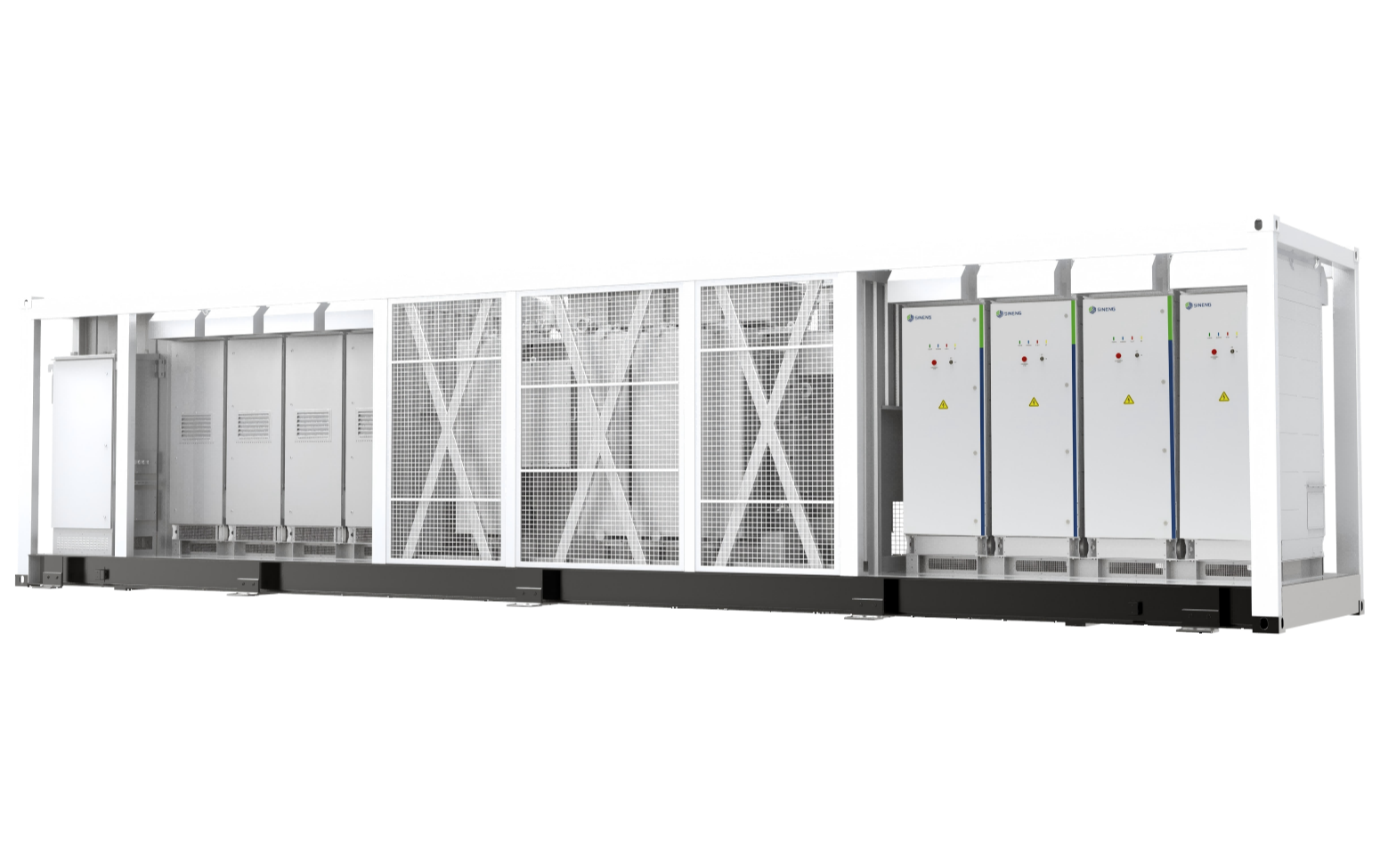

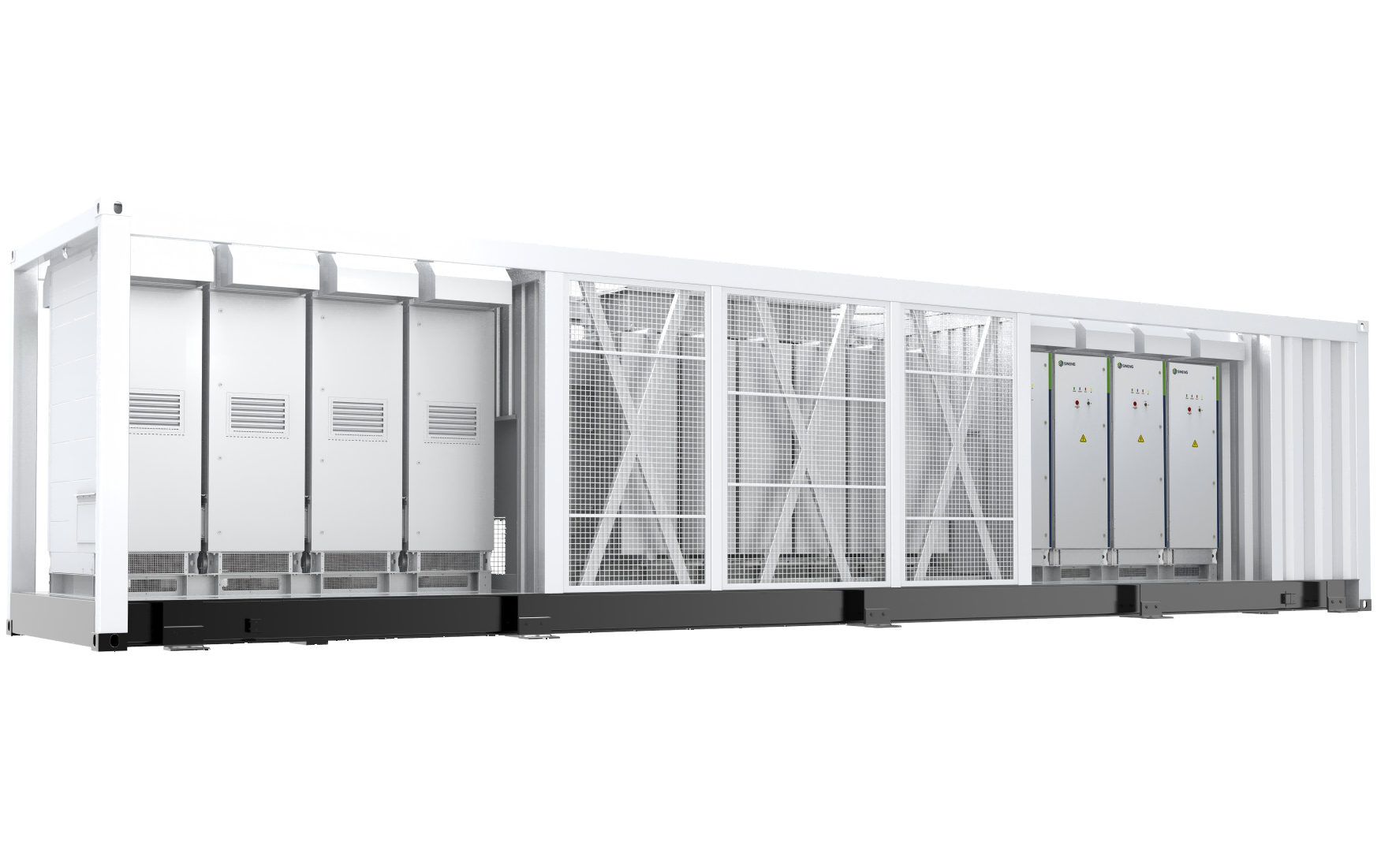

Turnkey Station With MV Transformer Integrated (Central PCS, 1500V)

Product Brochure
  • 图片轮播-左.png
  • 图片轮播-中(1).png
  • 图片轮播-右.png
  • 图片轮播-左.png
  • 图片轮播-中(1).png
  • 图片轮播-右.png

  • Features

  • DC Parameters

  • AC parameters (On-Grid)

  • AC parameters (Off-Grid)

  • Transformer

  • General data

  • Features

  • DC Parameters

  • AC parameters (On-Grid)

  • AC parameters (Off-Grid)

  • Transformer

  • General data

Contact Us
Features

  • · PCS Max. efficiency up to 99%
    · Full reactive power four-quadrant capability

  • · IP65 protection for PCS, IP54 for MV station
    · 40ft container for easy shipment and installation

  • · Support grid-forming function
    · Millisecond-level power response to EMS/SCADA

  • · MV Transformer and RMU pre-assembled
    · Designed for harsh environments

DC Parameters
ModelEH-10000-HB-UD-10~33
Max. DC voltage1500V
Max. DC current1403A*8
Battery voltage range1000～1500V
Number of DC input8
AC parameters (On-Grid)
ModelEH-10000-HB-UD-10~33
AC output power11000kVA@30℃, 10000kVA@45℃, 8750kVA@50℃
PCS Nominal AC Voltage
690V, 3W+PE
PCS AC voltage range
607~759V (Adjustable)
PCS Max. AC current
1151A*8
Nominal grid frequency
50/60Hz
Harmonic (THDi)<1.5% (100% load)
Power Factor
-1～+1
AC parameters (Off-Grid)
ModelEH-10000-HB-UD-10~33
PCS Nominal AC voltage
690V,3W+PE
PCS AC voltage range
607-759V(Adjustable)
AC voltage distortion
<1.5% (100% linear load)
DC voltage component
<0.5% Un (Linear balance load)
Unbalanced load capacity
100%
Nominal grid frequency50/60Hz
Transformer
ModelEH-10000-HB-UD-10~33
Isolation modeOil-Immersed Transformer
Transformer rated power
11000kVA@30℃, 10000kVA@45℃, 8750kVA@50℃
LV/MV voltage
0.69kV/33kV (10kV~33kV optional)
Transformer vector
Dy11y11
Transformer cooling type
ONAN
Oil type
Mineral oil
General data
ModelEH-10000-HB-UD-10~33
PCS Max. efficiency
99%
PCS European efficiency
98.5%
Ingress protection rating
IP54
Operating temperature range
-40~+60℃(>45℃ derating)
Relative humidity
0~100% (no condensing)
Max. altitude
＜2000m (standard) / 2000~5000m (optional)
Cooling method
Forced air cooling
Communication port
RS485/CAN/Ethernet/Bluetooth

Dimensions (W*D*H)

12192×2438×2896mm
Weight
34t
