Central Inverter

EP-9360/9600-HB-M4/20~35

MV Turnkey Solution for 1500V Utility PV Plant


Product Brochure

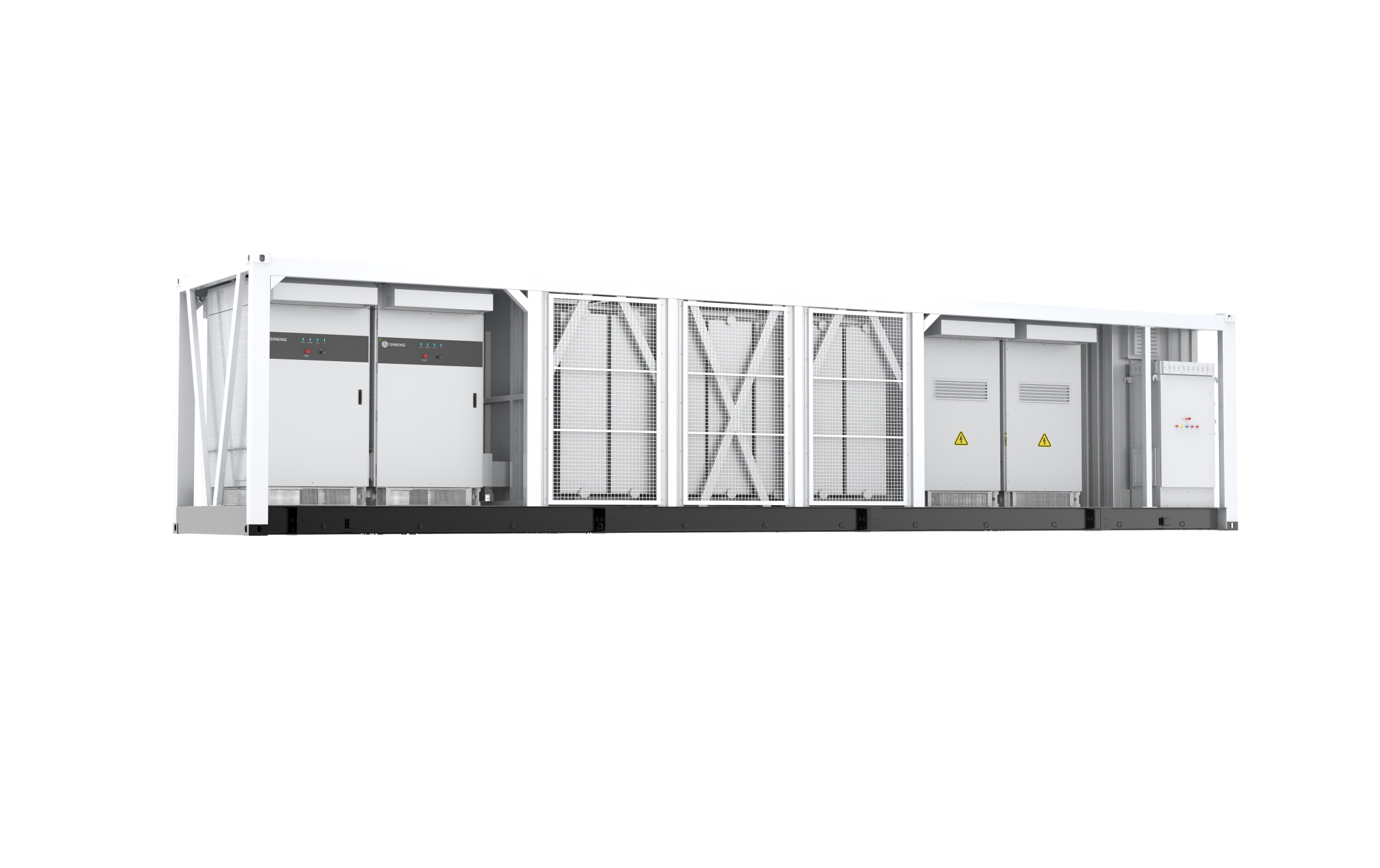

  • 左视图.png

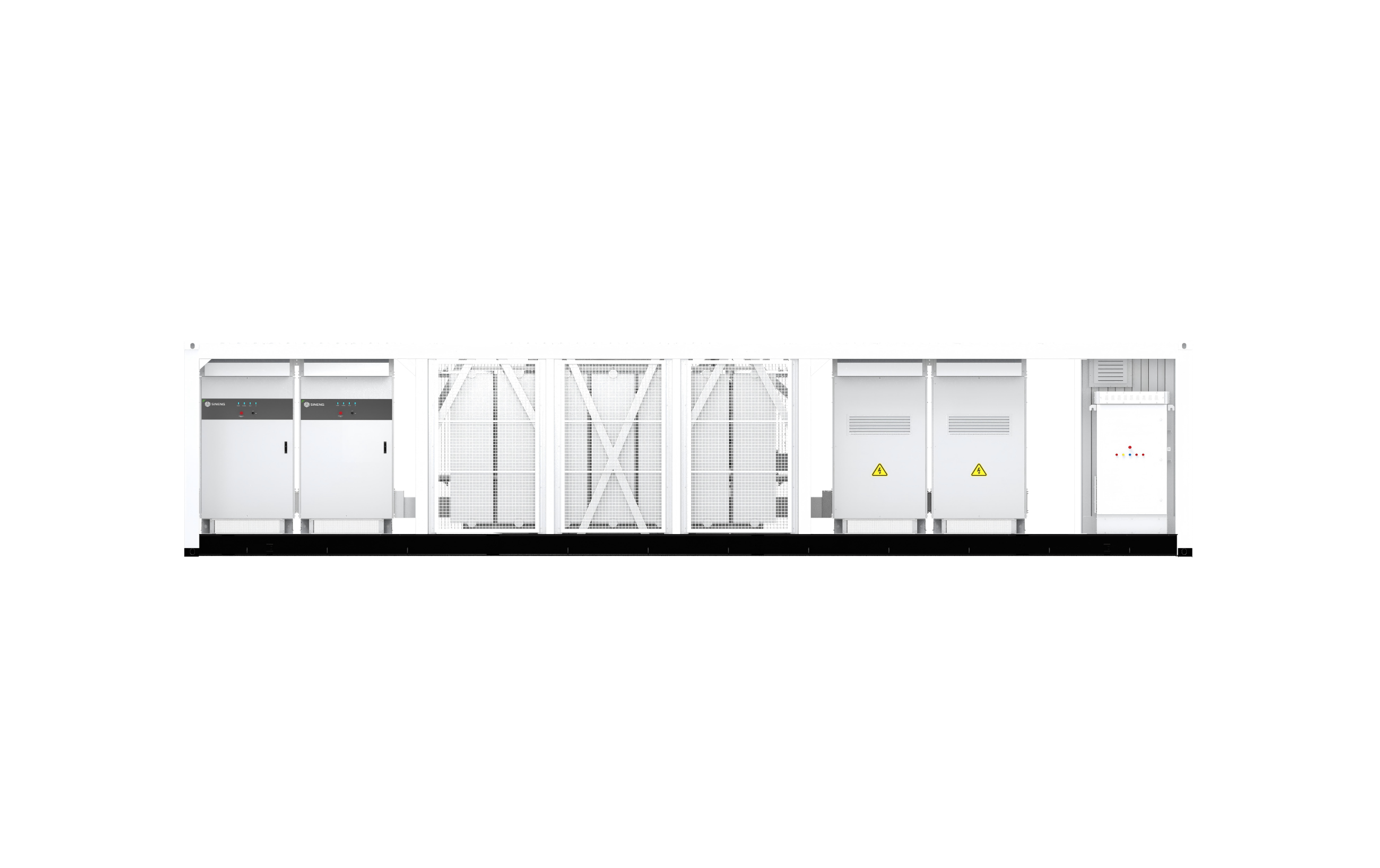

  • 正视图.png

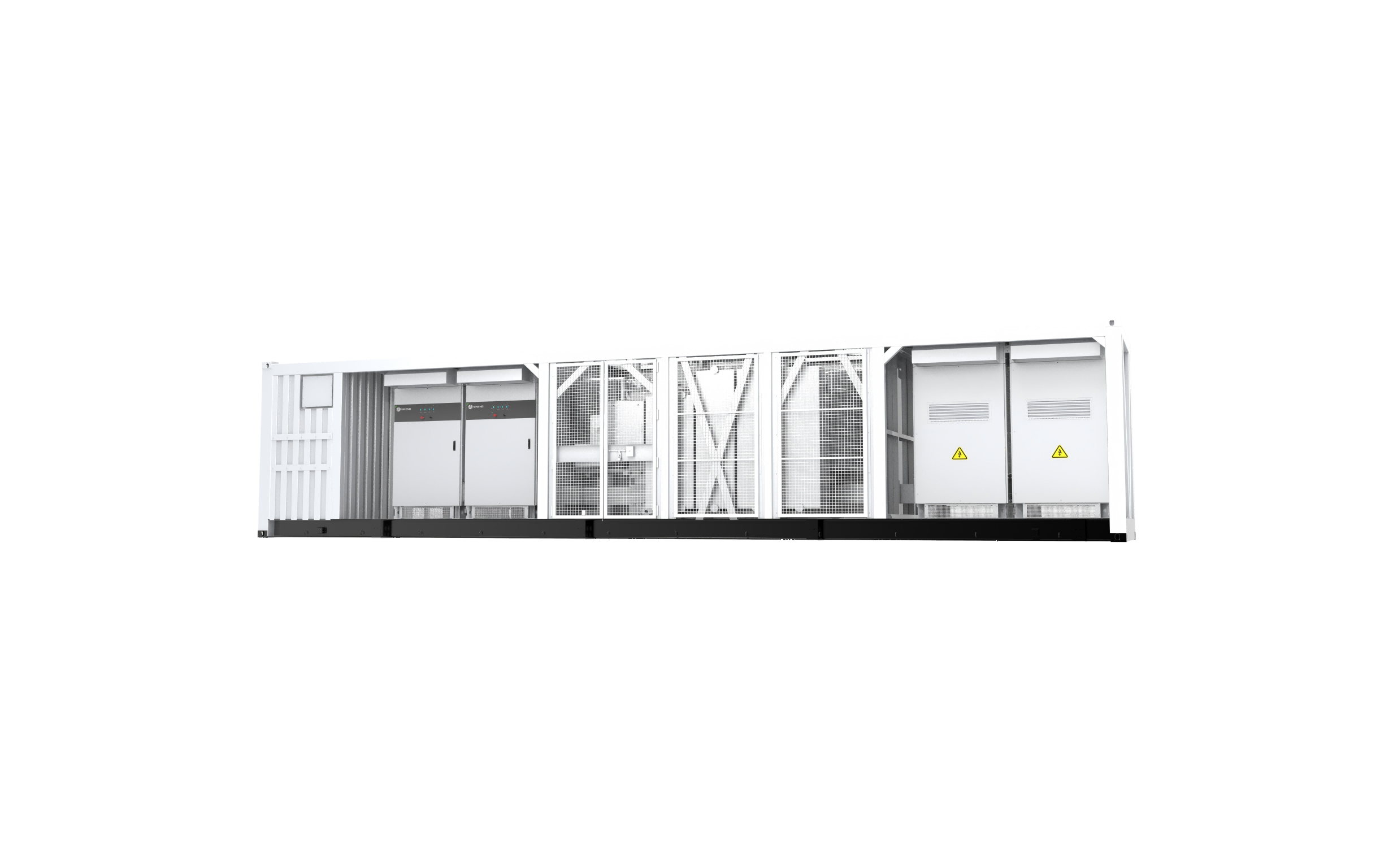

  • 右视图.png
  • 左视图.png
  • 正视图.png
  • 右视图.png

  • Features

  • Input (DC)

  • Output (AC)

  • Protection

  • Efficiency

  • Transformer

  • General Data

  • Features

  • Input (DC)

  • Output (AC)

  • Protection

  • Efficiency

  • Transformer

  • General Data

Contact Us
Features
  • f2icon04.svg
    More power generation

    · Inverter Max. efficiency 99%, Euro efficiency 98.8%
    · 1500Vdc PV system reduce power loss
    · High DC/AC ratio up to 1.8

  • f2icon05-771.svg
    Low system cost

    · Convenient for large block size PV plant
    · Integrated MV transformer and switchgear

  • f2icon06923-169.svg
    High reliability

    · Protection Level: lP54
    · Key components at front side, easy for maintenance
    · Current sensor for each DC input, more reliable for monitoring and control

  • f2icon07.svg
    Grid friendly

    · Support night SVG
    · Adjustable reactive power
    · Low harmonics and fast response for grid regulation

Input (DC)
Model

EP-9360-HB-M4/20~35

EP-9600-HB-M4/20~35

Max. PV input voltage1500V
Max. input current

4*3060A

4*3133A

MPPT voltage range for nominal power

938~1300V

Number of MPPT trackers4
Number of DC inputs40 (Maximum:64)
Output (AC)
Model

EP-9360-HB-M4/20~35

EP-9600-HB-M4/20~35

AC output power

9375kVA@52℃/11250kVA@25℃

9600kVA@52℃/11520kVA@25℃

AC voltage range20~35kV
Rated grid frequency/range50Hz/45~55Hz, 60Hz/55~65Hz
Output current harmonic (at nominal power)<3%
DC current injection<0.5% In
Power factor at nominal power/range>0.99/0.8 lagging to 0.8 leading
Protection

Model

EP-9360-HB-M4/20~35

EP-9600-HB-M4/20~35

DC input protection

Load break switch+fuse

AC output protection

Circuit breaker
AC MV output protection
Circuit breaker
Overvoltage protection
DC Type II/AC Type II
Leakage current protection
Yes
Grid monitoring/Ground fault monitoring
Yes/Yes
Insulation monitoring
Yes
Overheat protection
Yes
Night SVG function
Yes


Efficiency

Model

EP-9360-HB-M4/20~35

EP-9600-HB-M4/20~35

Inverter max. efficiency

99%

Inverter EU efficiency

98.8%


Transformer
Model

EP-9360-HB-M4/20~35

EP-9600-HB-M4/20~35

Transformer rated power
9375kVA
9600kVA

Transformer max. power

11250kVA

11520kVA
LV/MV Voltage
0.66/20~35kV
Vector group
Dy11y11
Transformer cooling type
ONAN (Oil Natural Air Natural)
General Data
Model

EP-9360-HB-M4/20~35

EP-9600-HB-M4/20~35

Auxiliary power supply
Standard: 5kVA, Optional: max. 40kVA
Protection level
Inverter: IP65, Others: IP54
Operating temperature
-30~+60℃
Allowed humidity (non condensing)
0~95%
Cooling method
Temperature controlled forced air cooling
Max. operating altitude
2000m (standard) />2000m (optional)
Display
Standard: LED indicator, Bluetooth+APP
Communication por
RS485/Ethernet, Optional: optical fiber
Dimensions (W×H×D)
12192×2896×2438mm
Weight
40t
